Schneider Electric TeSys LC1D25 3-Pole 40A Motor Contactor Switch Used
Safely manage and isolate high-load three-phase electrical motor circuits without paying full retail distributor expenses. This fully verified, pre-owned Schneider Electric TeSys LC1D25 Motor Contactor provides industrial-grade electromechanical load breaking, serving as a reliable choice for commercial HVAC automation panels, factory conveyor motor lines, and high-capacity pump starter boxes.
| SPECIFICATION / VALUE | DETAILS & BENEFITS |
|---|---|

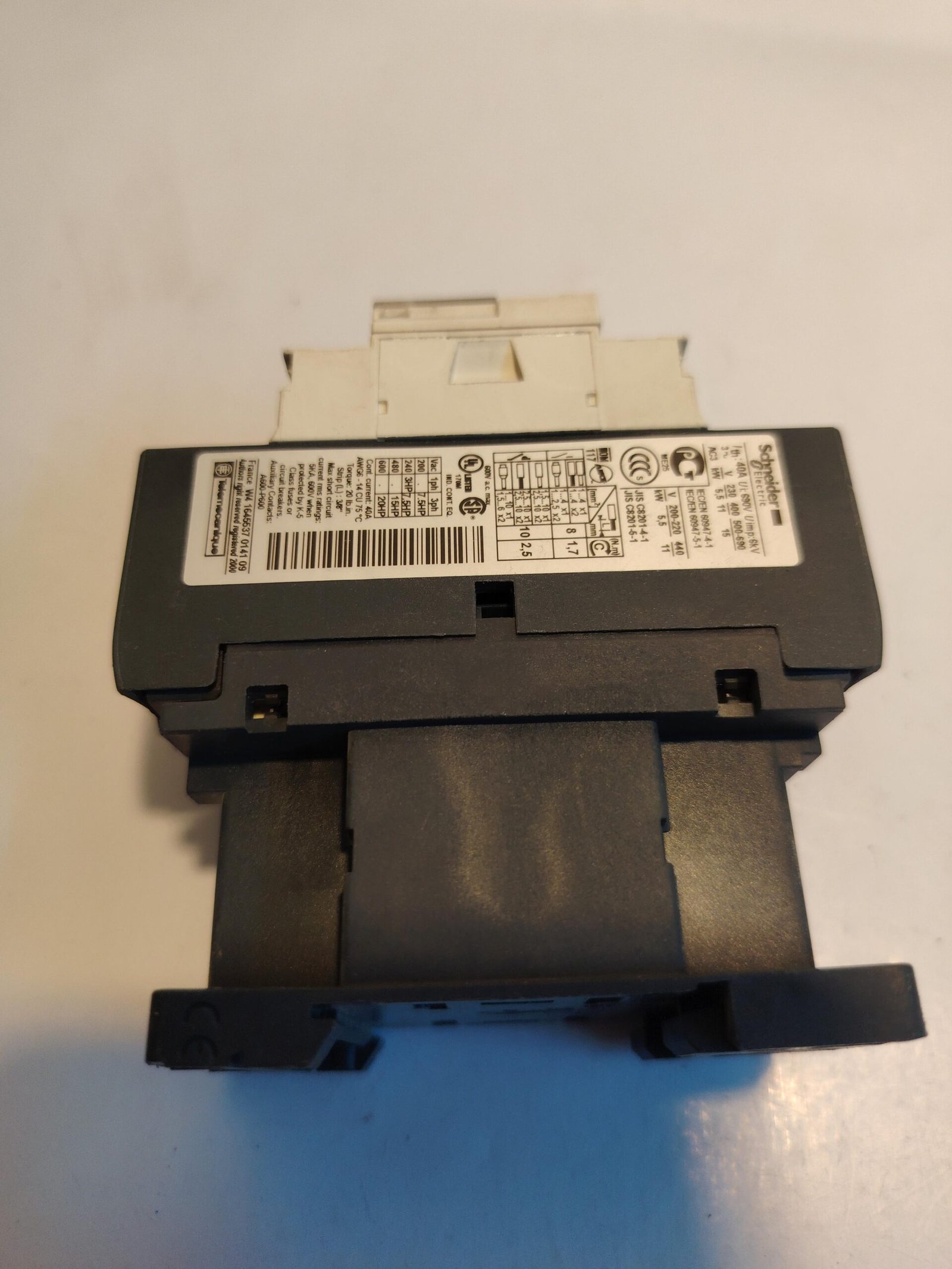

| Item Condition | USED — Thoroughly inspected second-hand switchgear assembly. The outer non-conductive casing is fully structural with clean visible text plates, screw terminal tracks are unmarred, and the physical internal core armature moves with factory-fresh mechanical tightness. France tracking data on side housing. |
| Product Type | Industrial 3-pole (3P) electromechanical non-reversing motor starter power contactor component. |
| Model / Series Reference | TeSys D Series / Full Model Code LC1D25 (Conforms strictly to international safety standards including IEC/EN 60947-4-1, IEC/EN 60947-5-1, and JIS C8201-4-1 / C8201-5-1). Certified by UL, CSA, CCC, PCT, and CE. |
| Thermal Load Rating (Ith) | 40 Amps (40A) continuous open-air conventional thermal capacity. Calibrated safely for wire paths matching AWG 6 – 14 CU copper lines with a rated lower terminal tightening torque up to 20 lb-in. Upper control paths clamp down at 15 lb-in (1.7 N.m). |
| 3-Phase Motor Power AC-3 | Engineered for robust operational inductive demands: 5.5kW at 200-220V, 11kW at 380-415V, and up to 15kW across 500V to 690V industrial power grids. Rated up to 20HP under 3-phase 600V settings. |

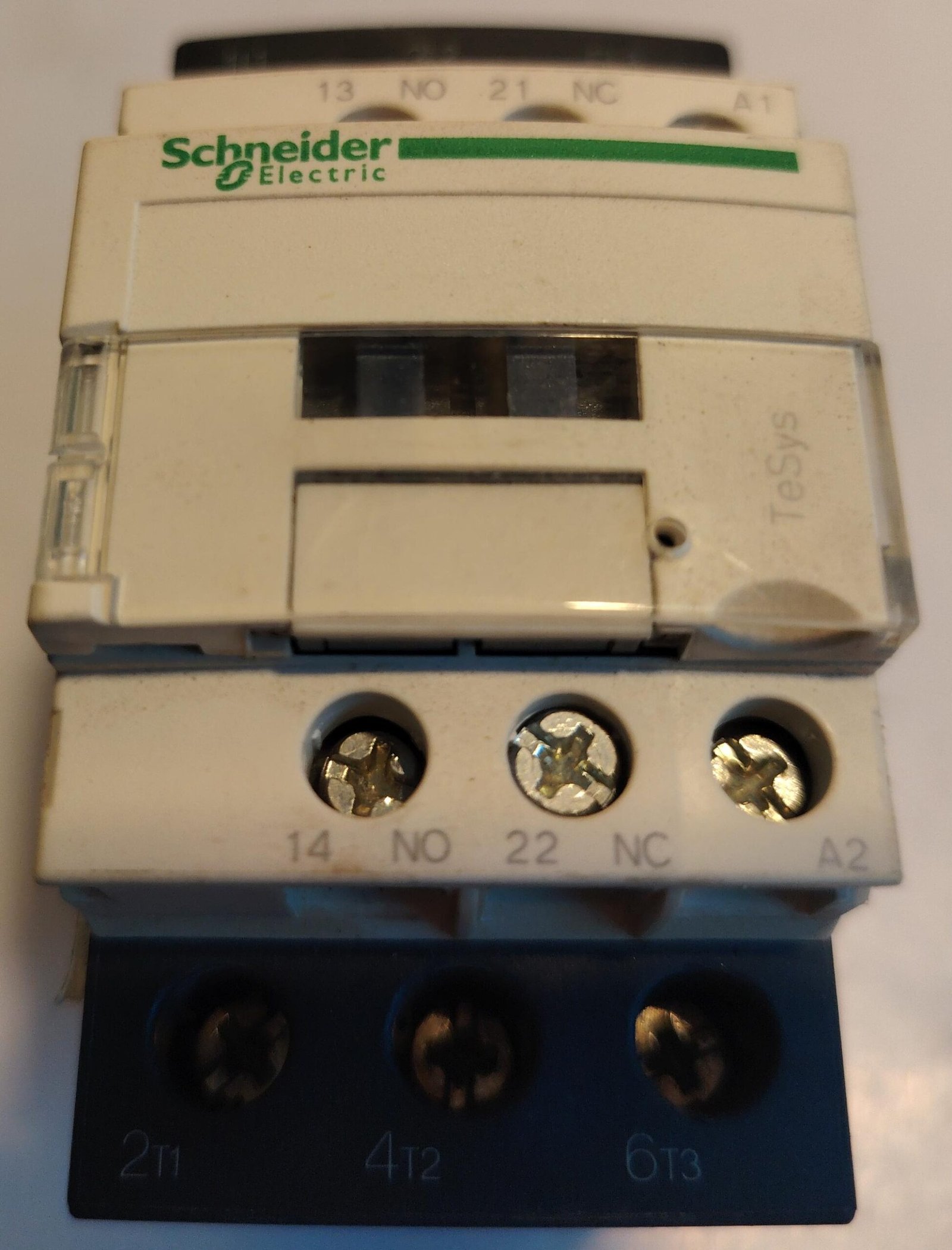

| Integrated Auxiliary Contacts | Features built-in 1 Normally Open (13-14 NO) and 1 Normally Closed (21-22 NC) auxiliary signal tracks across front blocks. Rated heavily at Pilot Duty A600 and P600 metrics for safe electrical interlocks and automated status responses. |
| Insulation & Voltage Limits | Rated Insulation Voltage (Ui) of 690V with a high-capacity Rated Impulse Withstand Voltage (Uimp) threshold of 6 kV. Rated safely for 600V maximum under UL/CSA industrial control equipment guidelines. |
| Value Advantage | Genuine European-built engineering design by Schneider Electric. Heavy arc-shroud design isolates phase lines effectively to prevent early contact point pitting or trace leakage tracking in heavy cycle setups. Offers plant facility managers an identical replacement choice to clear panel faults at a highly reduced pre-owned cost. |
