Klöckner Moeller DIL E Mini Contactor with Auxiliary Contact Block Used
Get authentic, industrial-grade motor control and signal logic hardware without paying full retail switchboard expenses. This pre-owned, German-engineered Klöckner Moeller Mini Contactor Assembly combines a reliable 3-pole switching frame with a high-density auxiliary contact block to offer a space-saving solution for electrical panels.
| SPECIFICATION / VALUE | DETAILS & BENEFITS |
|---|---|

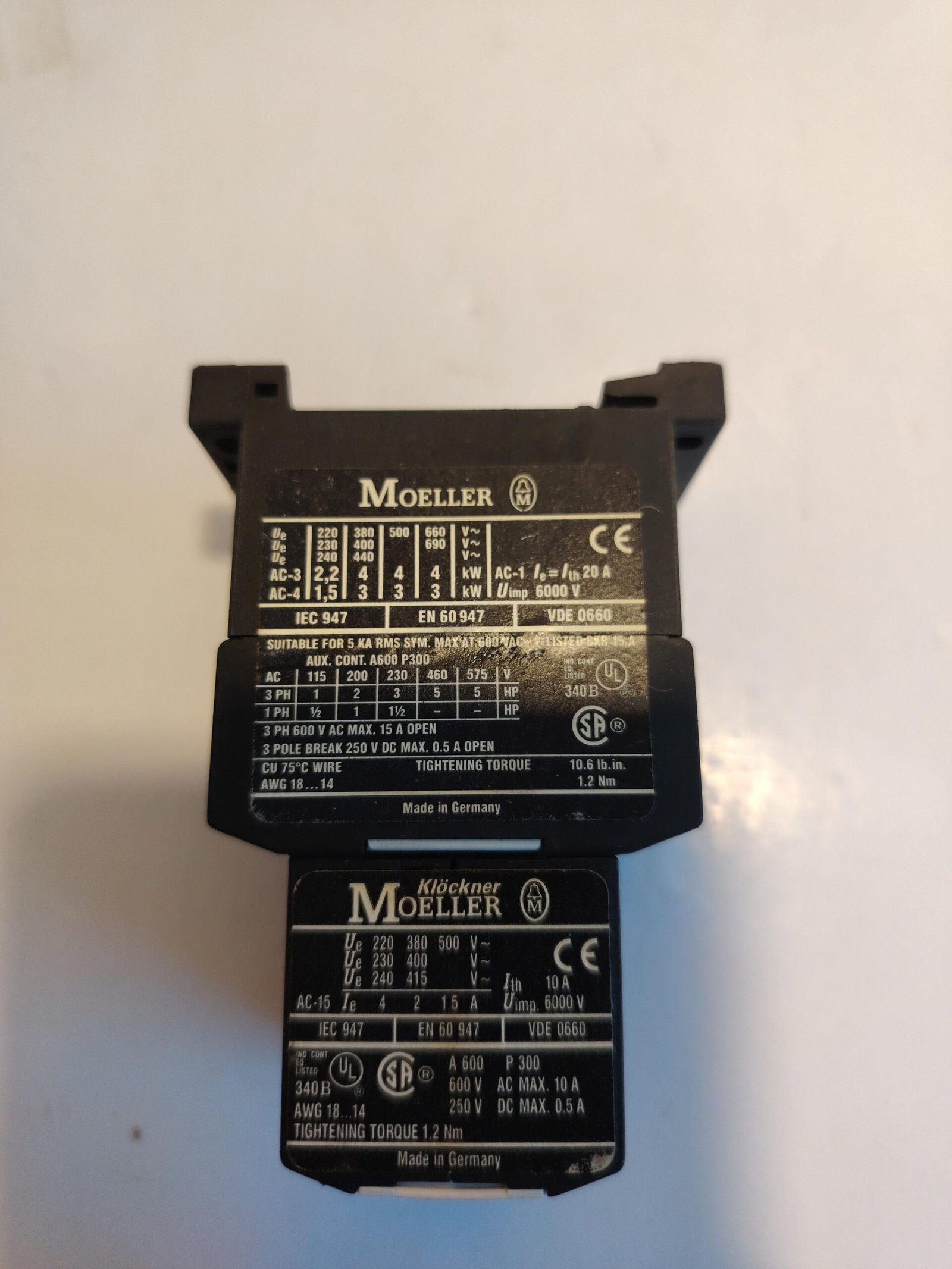

| Item Condition | USED — Thoroughly inspected, mechanical core travel checked, and side terminal tracks cleaned. Both backplate data sheets and technical specifications are perfectly crisp and readable. Made in Germany. |

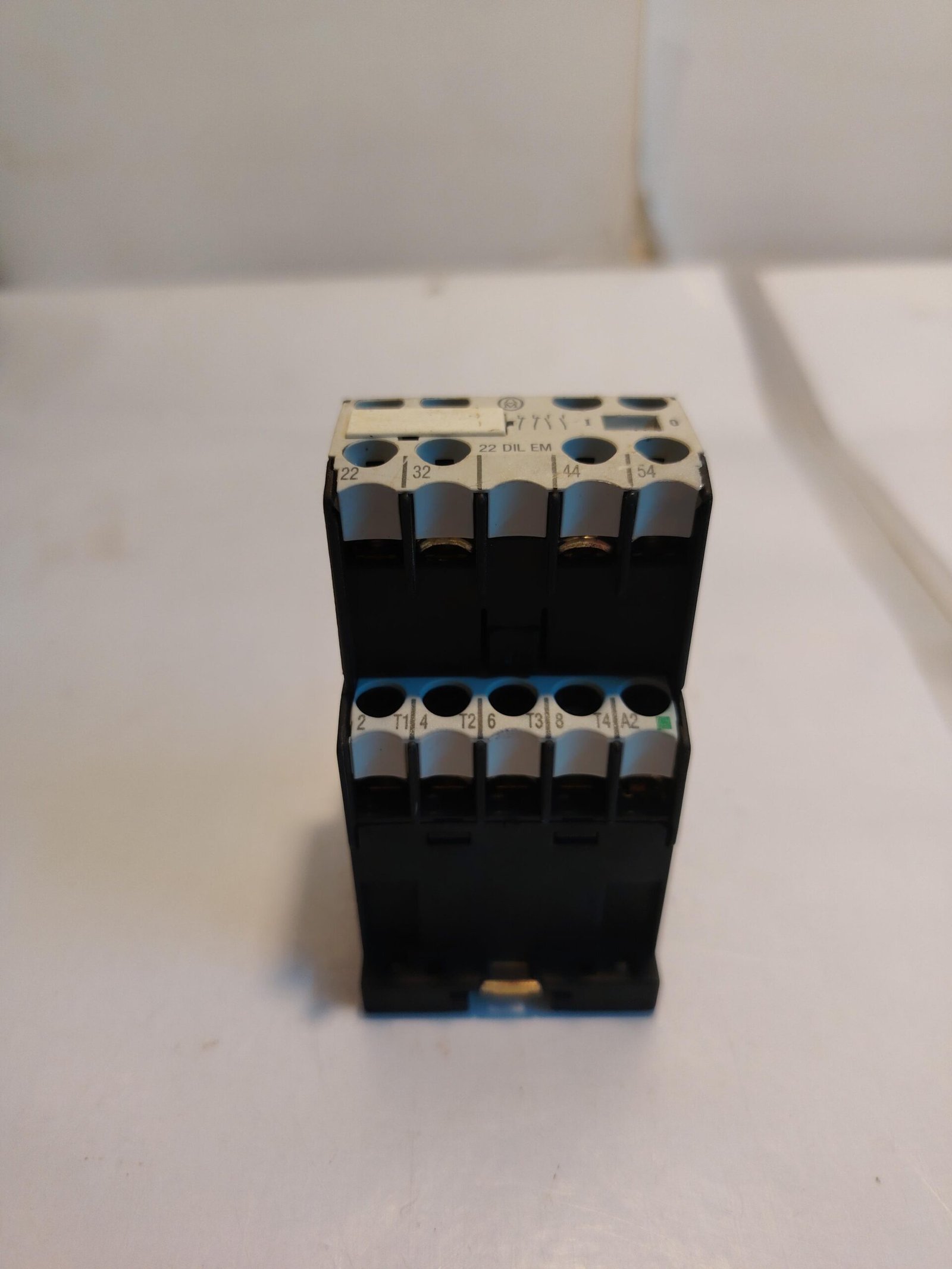

| Assembly Components | Consists of a base Klöckner Moeller DIL E series miniature contactor fitted with an add-on multi-pole front auxiliary contact expansion block. |
| Model / Series Reference | DIL E Range (Conforms to IEC 947, EN 60947, and VDE 0660 industrial standards). |
| Contactor Ratings (AC-3) | Delivers operational power handling of 2.2kW @ 220V/230V/240V, and a robust 4kW spanning 380V, 400V, 500V, up to 660V/690V AC distribution loops. Rated continuous thermal current (Ith) up to 20 Amps under non-inductive AC-1 limits. |
| Three-Phase HP Limits | UL/CSA listed performance: 1 HP @ 115V, 2 HP @ 200V, 3 HP @ 230V, and 5 HP @ 460V / 575V three-phase electrical networks. |
| Auxiliary Block Ratings (AC-15) | Integrated logic block handling control switching loops up to 4A @ 220V/230V/240V and 2A @ 380V/400V/415V AC. Certified thermal rating (Ith) of 10A max at 600V AC (A600 / P300 classification). |
| Value Advantage | Authentic automation component by Klöckner Moeller. Mechanically tested to verify responsive contact actuation and strong terminal clamping paths without premium brand-new pricing. |
