Marvid 3PDT 10A Plug-In Industrial Power Relay Used

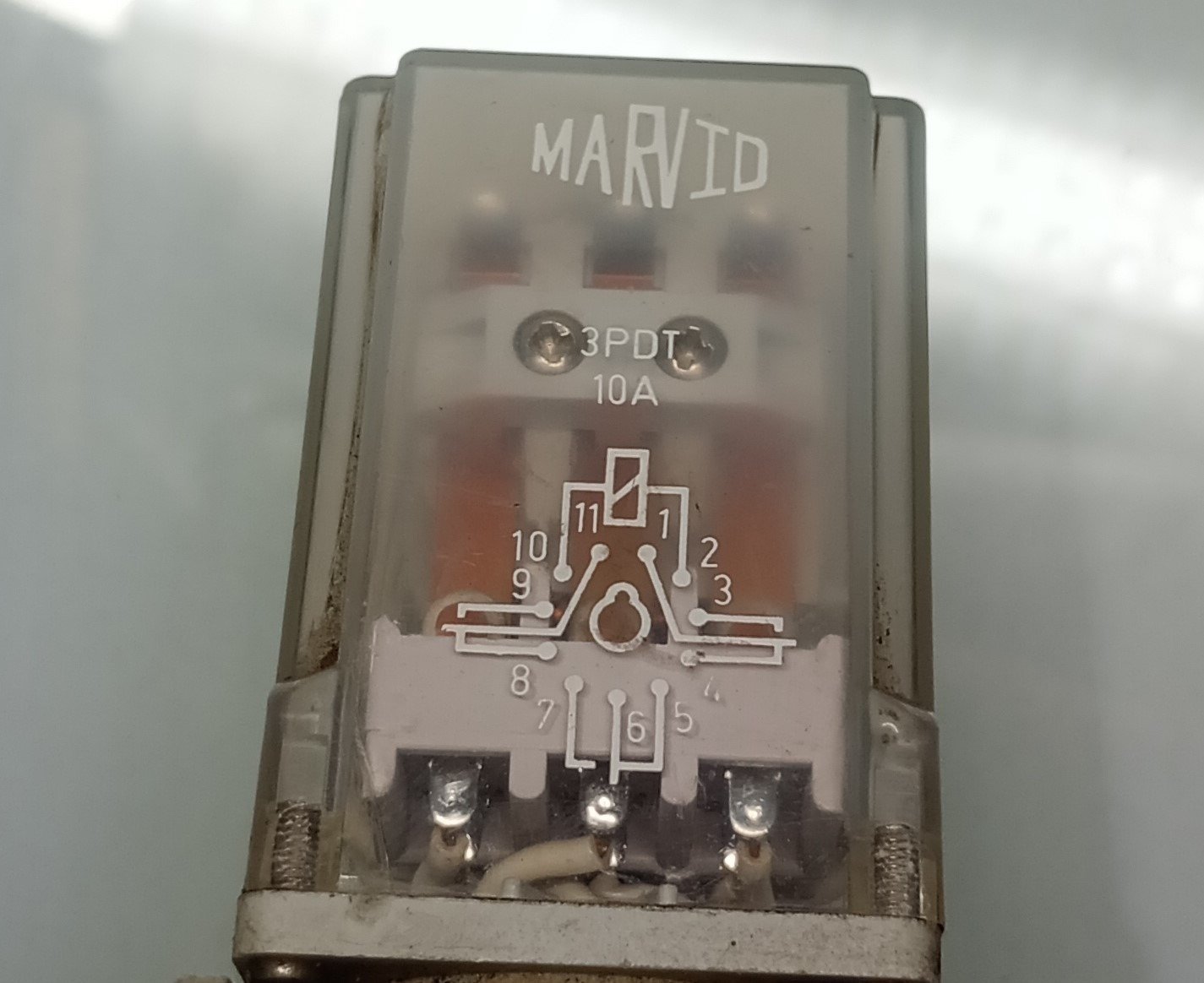

Get authentic, professional industrial automation components without paying full retail distributor expenses. This pre-owned Marvid 3PDT Power Relay features a clear protective dust shell and a crisp internal connection schematic map, making it an excellent replacement unit for machinery automation panels, circuit sequence interlocking, and electrical signal isolation loops.
| SPECIFICATION / VALUE | DETAILS & BENEFITS |
|---|---|
| Item Condition | USED — Thoroughly bench-tested and operational. The internal copper armature coil mechanism moves with a quick, crisp response, and all base connector pins are perfectly straight and clean. The faceplate text and wiring schematic remain unblemished. |
| Product Overview | Industrial-grade modular plug-in logic relay engineered by Marvid for high-reliability circuit switching and space-saving integration into multi-tier socket holders. |
| Contact Configuration | 3PDT (Triple Pole Double Throw) high-density contact configuration, allowing simultaneous management of up to three independent circuits. |
| Rated Current | 10 Amps (10A) max continuous load handling capability under standard industrial operational parameters. |
| Base Pin Layout | 11-Pin circular base (Undecal arrangement), compatible with standard 11-pin DIN rail screw socket bases (such as the Broyce Control FWD11 profile). |
| Visual Connection Diagram | Features a high-visibility connection map stamped directly onto the clear casing faceplate, clearly grouping common terminals, input paths, and NO/NC loops (Pins 1 through 11). |
| Value Advantage | Authentic industrial componentry by Marvid. Checked mechanically and electronically to guarantee consistent, safe internal contact connections without premium market pricing. |
