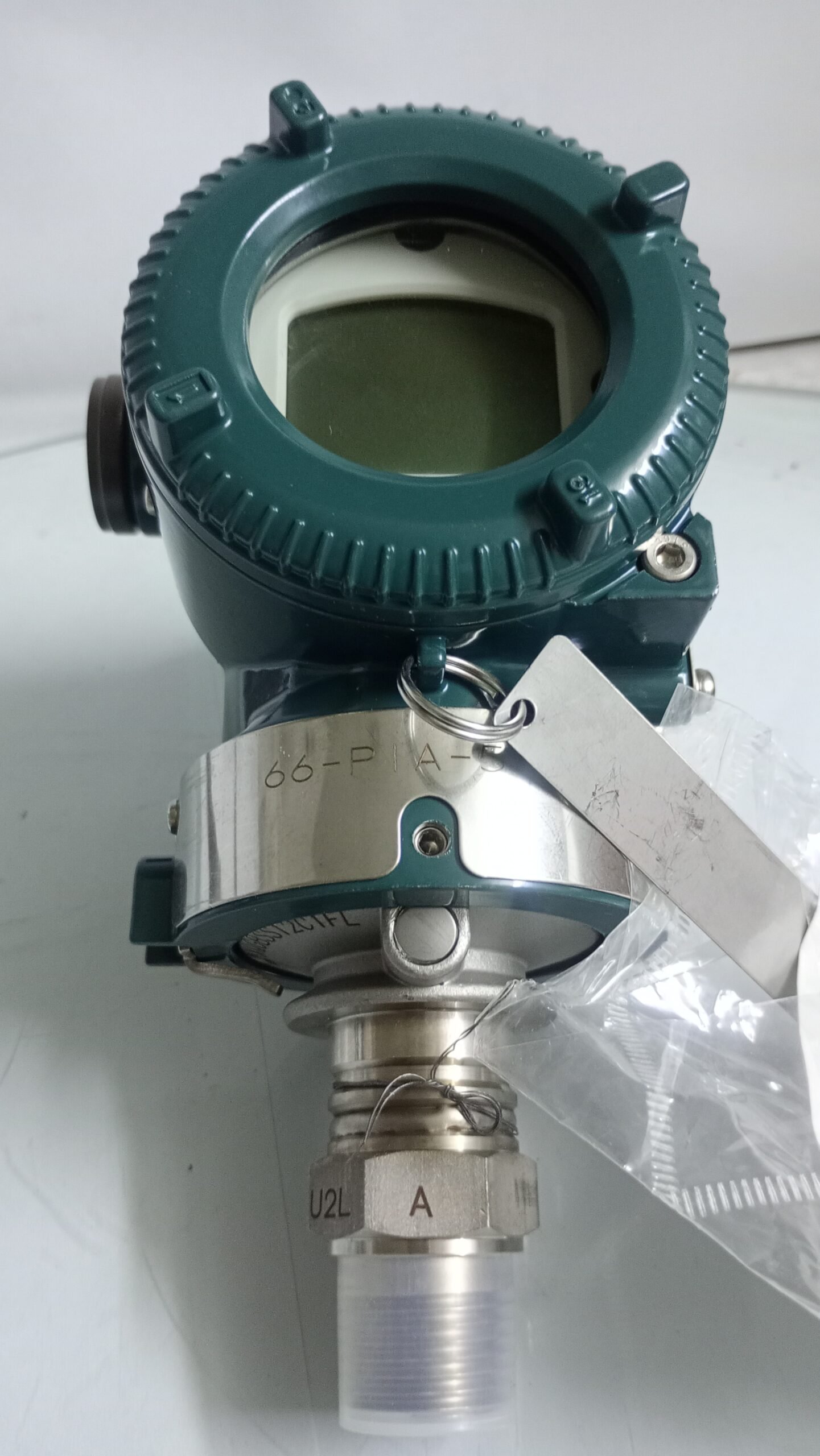

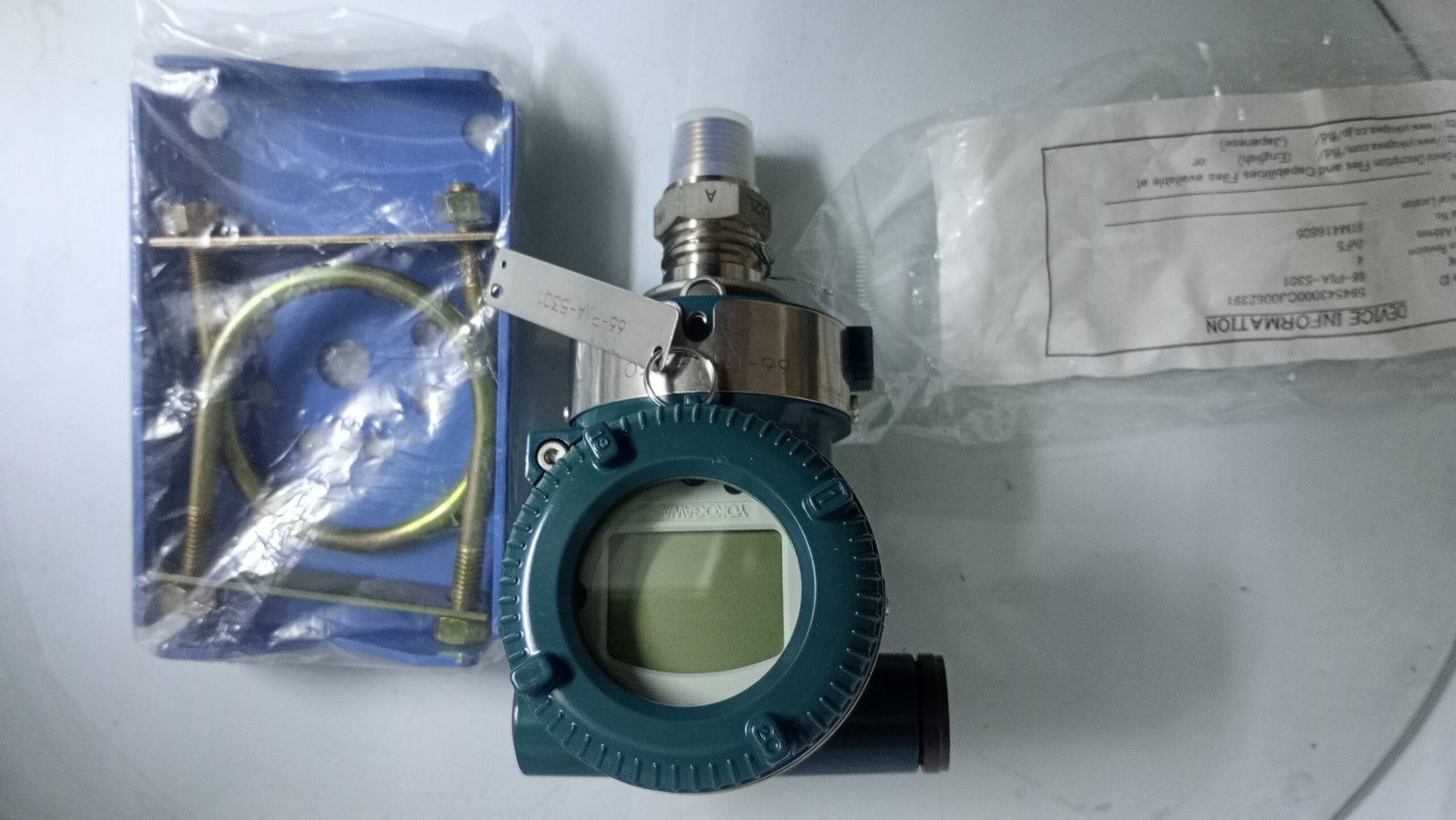

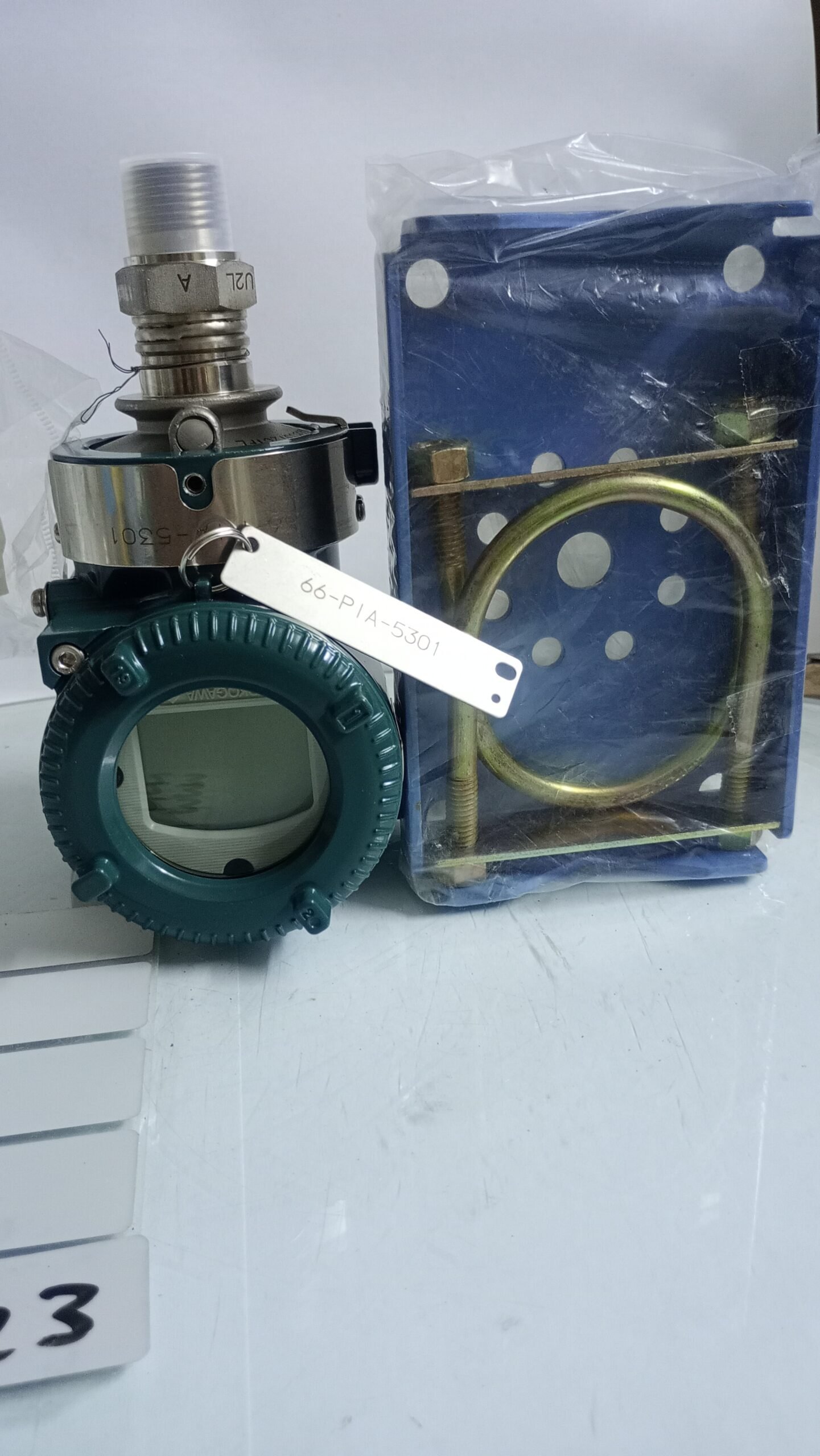

Yokogawa EJX530A FBS7N Gauge Pressure Transmitter is a high-precision industrial pressure sensor designed for accurate gauge pressure measurement in automation and process control systems. This new transmitter delivers stable performance and durability in demanding environments such as oil & gas, chemical, and power plants.
| Specification | Details |
|---|
| Brand | Yokogawa |
| Model | EJX530A |

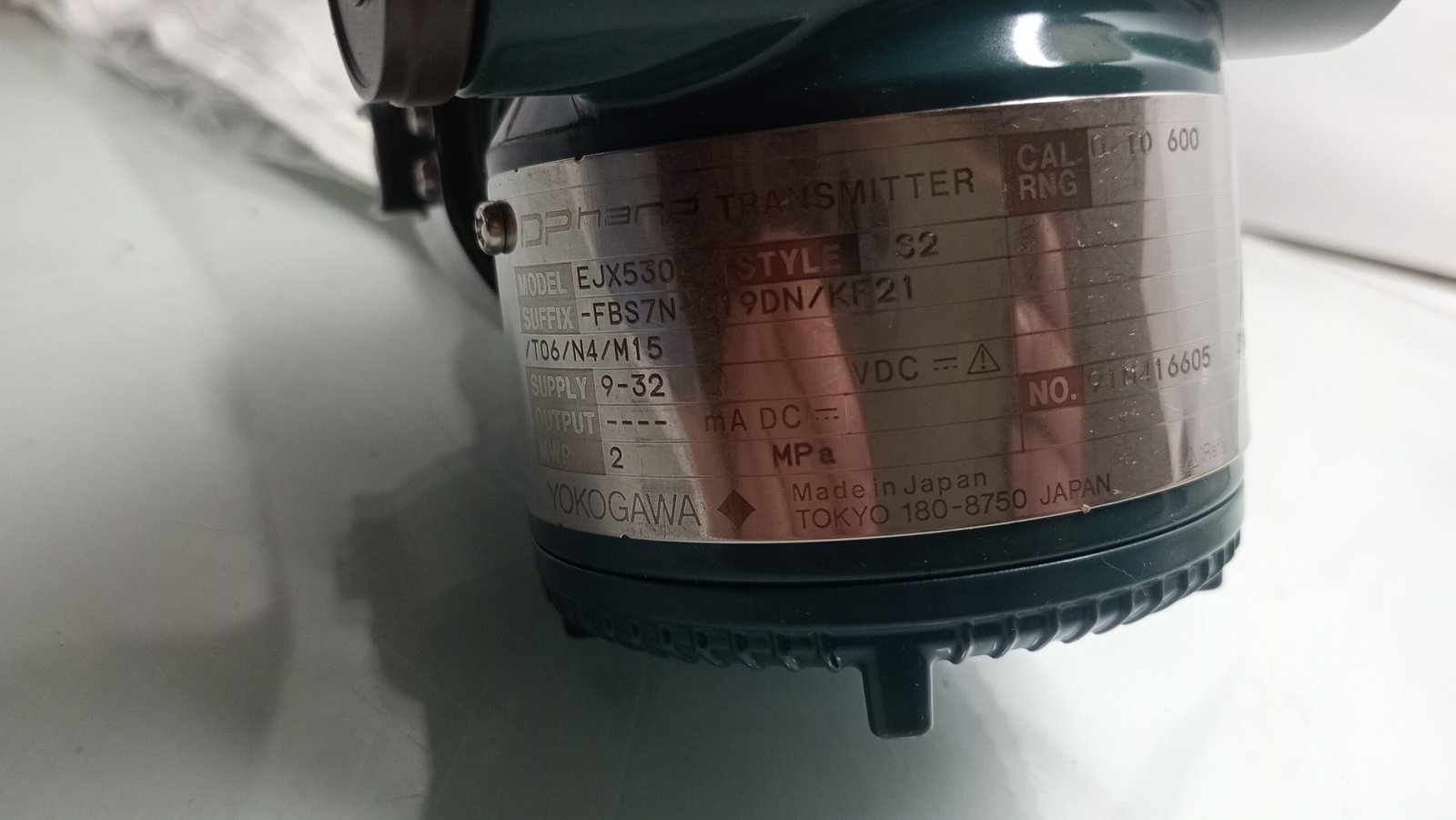

| Configuration | FBS7N -019DN/KF21/T06/N4/M15 Style 2 |
| Type | Gauge Pressure Transmitter |
| Output | 4–20 mA / HART (typical) |
| Accuracy | High Industrial Precision |
| Process Connection | Thread / Flange per style |
| Condition | New |
| Application | Oil & Gas, Chemical, Power Plant, Automation |
| Suffix Code | S.Desc | Description | Availability |
| -F | Output Signal | Digital communication, (FOUNDATION Fieldbus protocol) | Available |
| B | Measurement Span | 0.02 to 2 MPa (2.9 to 290 psi),(0.2 to 20 kgf/cm2)(0.2 to 20 bar) | Available |
| S | Wetted Parts Material | Process Connector: 316L SSD, Diaphragm: Hastelloy C-276,,Others: 316L SST | Available |
| 7 | Process Connection | 1/2NPT male | Available |
| N | | Always ‘N’ | Available |
| -0 | | Always ‘-0’ | Available |
| 1 | Amplifier Housing | Cast aluminum alloy | Available |
| 9 | Electrical Connection | M20 female, two electrical, connections and a blind plug | Available |
| D | Integral Indicator | Digital indicator | Available |
| N | Mounting Bracket | None | Available |
| /KF21 | Optional Features | CENELEC ATEX (KEMA) flameproof approval | Discontinued |
| /T06 | Optional Features | Pressure test/leak test certificate, Test pressure:2 MPa (290 psi) | Available |
| /N4 | Optional Features | Stainless steel tag plate wired onto the, transmitter | Available |
| /M15 | Optional Features | Material certificate: process connector | Available |
