| Specification / Value | Details & Benefits |
|---|---|
| Item Condition | USED — Thoroughly inspected, mechanical black toggle operation verified, and frame structure checked. |
| Product Overview | Commercial-grade molded case circuit breaker (MCCB) from Schneider Electric’s EasyPact tier, engineered to deliver straightforward, reliable overload and short-circuit protection for sub-distribution sub-panels. |
| Model / Frame Size | EasyPact Series / EZC100F Frame (Category A) |
| Trip Unit Type | Fixed Thermal-Magnetic trip unit calibrated for a 100A continuous rating under standard 40/50°C baseline reference conditions. |
| Pole Configuration | 3-Pole (3P) configuration built for balanced, synchronized tracking and isolation across three-phase distribution architecture. |
| Rated Current (In) | 100 Amps (100A) continuous load capacity. |
| Breaking Capacities (Icu) |
15kA @ 380V / 400V / 415V AC 25kA @ 110V / 130V AC 25kA @ 220V / 230V / 240V AC 7.5kA @ 440V AC 5kA @ 550V AC |
| Voltage & Impulse Ratings | Rated Operational Voltage (Ue): Up to 550V AC (50/60Hz lines) or 250V DC | Insulation Voltage (Ui): 690V | Impulse Withstand Voltage (Uimp): 6kV. |
| Standards Compliance | Carries clear front faceplate markings. Fully certified under international codes IEC 60947-2 (Cat.A) and JIS C8201-2-1. |
| Value Advantage | Features a clear physical toggle lever with explicit text indicators (ON/OFF/Trip) and an integrated red manual diagnostic override “push to trip” button. Pre-owned but fully verified mechanically to deliver authentic Schneider panel safety at a major cost markdown. |
Circuit Protection & Breakers

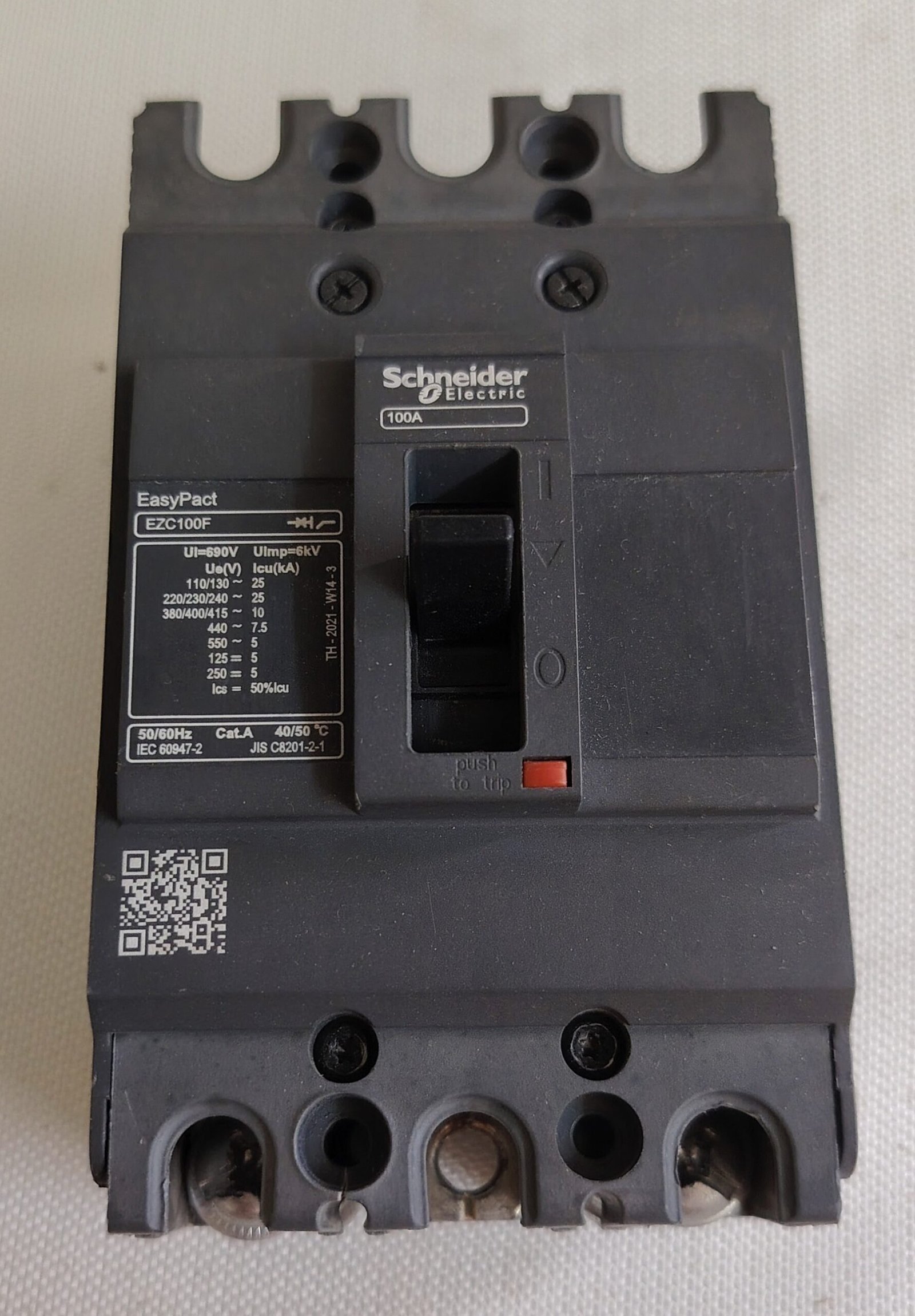

Schneider EasyPact EZC100F 100A 3-Pole MCCB – USED
High-reliability used Schneider Electric EasyPact EZC100F molded case circuit breaker (MCCB). Features a heavy-duty 3-Pole (3P) configuration with a fixed 100A continuous current rating. Provides excellent overcurrent and short-circuit protection with a 15kA breaking capacity at 380/400/415V AC for commercial and industrial panel boards.
