| Specification / Value | Details & Benefits |
|---|---|
| Item Condition | USED — Thoroughly inspected, mechanical toggle mechanism verified, and terminal ports checked. |
| Product Overview | Industrial-grade molded case circuit breaker (MCCB) engineered by Schneider Electric to provide top-tier protection for electrical distribution systems and heavy manufacturing machinery against overloads and short circuits. |
| Model / Frame Size | Compact NSX Series / NSX 100F Frame (Category A) |
| Trip Unit Type | TM 100 D (Thermal-Magnetic) with adjustable thermal settings calibrated from 70A to 100A (100A/50°C rating). Fixed magnetic setting at 800A. |
| Pole Configuration | 3-Pole (3P) configuration optimized for standard three-phase power networks. |
| Breaking Capacities (Icu) |
36kA @ 415V AC 85kA @ 240V AC 35kA @ 440V AC 25kA @ 500V AC 8kA @ 690V AC |
| Voltage & Impulse Ratings | Rated Operational Voltage (Ue): Up to 690V AC (50/60Hz) | Insulation Voltage (Ui): 800V | Impulse Withstand Voltage (Uimp): 8kV. |
| Standards Compliance | CE Certified; fully compliant with international IEC / EN 60947-2 and NEMA AB1 manufacturing standards. |
| Value Advantage | Features a clear physical toggle lever with explicit text indicators (ON/OFF/Trip). Pre-owned but fully verified mechanically to deliver authentic Schneider panel safety at a massive cost-saving discount. |
Circuit Protection & Breakers

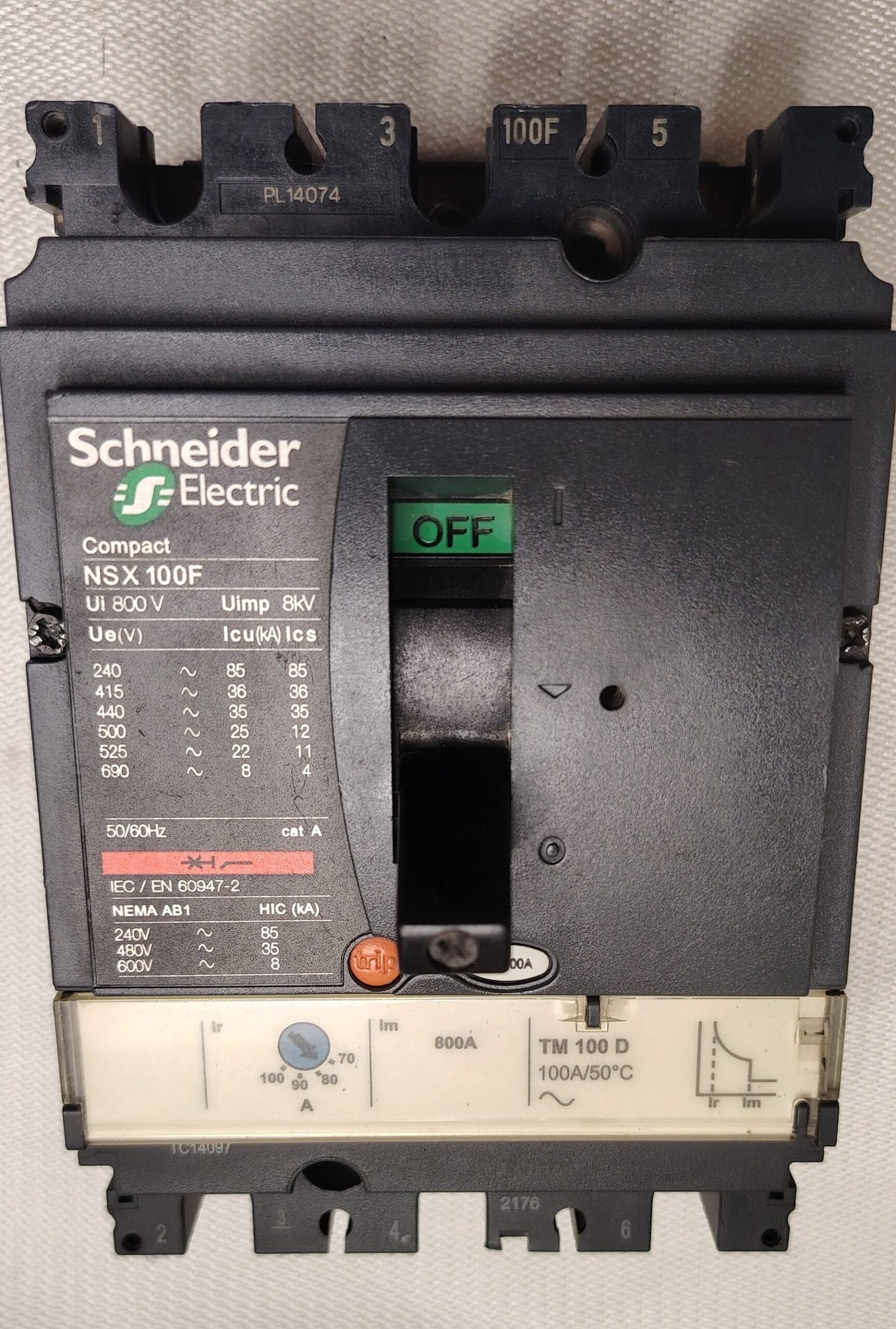

Schneider Compact NSX100F 100A 3-Pole MCCB – USED
High-performance used Schneider Electric Compact NSX100F molded case circuit breaker (MCCB). Features a heavy-duty 3-Pole (3P) configuration equipped with an adjustable TM 100 D thermal-magnetic trip unit (70A–100A range). Provides exceptional overcurrent safety with a 36kA breaking capacity at 415V for commercial and industrial networks.
