| Specification / Value | Details & Benefits |
|---|---|
| Item Condition | USED — Thoroughly inspected, mechanical toggle mechanism verified, and terminal lugs checked. |
| Product Overview | High-amperage miniature circuit breaker (MCB) engineered by Schneider Electric to safeguard commercial and industrial electrical distribution boards against massive overloads and high fault short-circuits. |
| Model & Reference | C120N Range / Catalog Code Number: 18367 |
| Tripping Curve Profile | C Curve characteristics (C100), specifically tailored for power delivery networks with high operational inductive loads or standard electric motor startup currents. |
| Pole Configuration | 3-Pole (3P / 3-module frame width) layout built for standard high-demand three-phase electrical distribution systems. |
| Rated Current (In) | 100 Amps (100A) continuous heavy-duty load capacity performance. |
| Operational Voltage (Ue) | 400V~ / 415V~ AC system compatibility running on standard 50/60Hz frequency networks. |
| Breaking Capacity (Icn) | 10000A / 10kA fault current limitation threshold rating under EN 60898-1 and IEC 60898-1 standards. |
| Value Advantage | Features a robust continuous three-pole mechanical trip handle bar with physical status marking text. Pre-owned but fully verified mechanically to provide dependable system expansions, panel updates, or backup inventory at a major cost markdown. |
Circuit Protection & Breakers

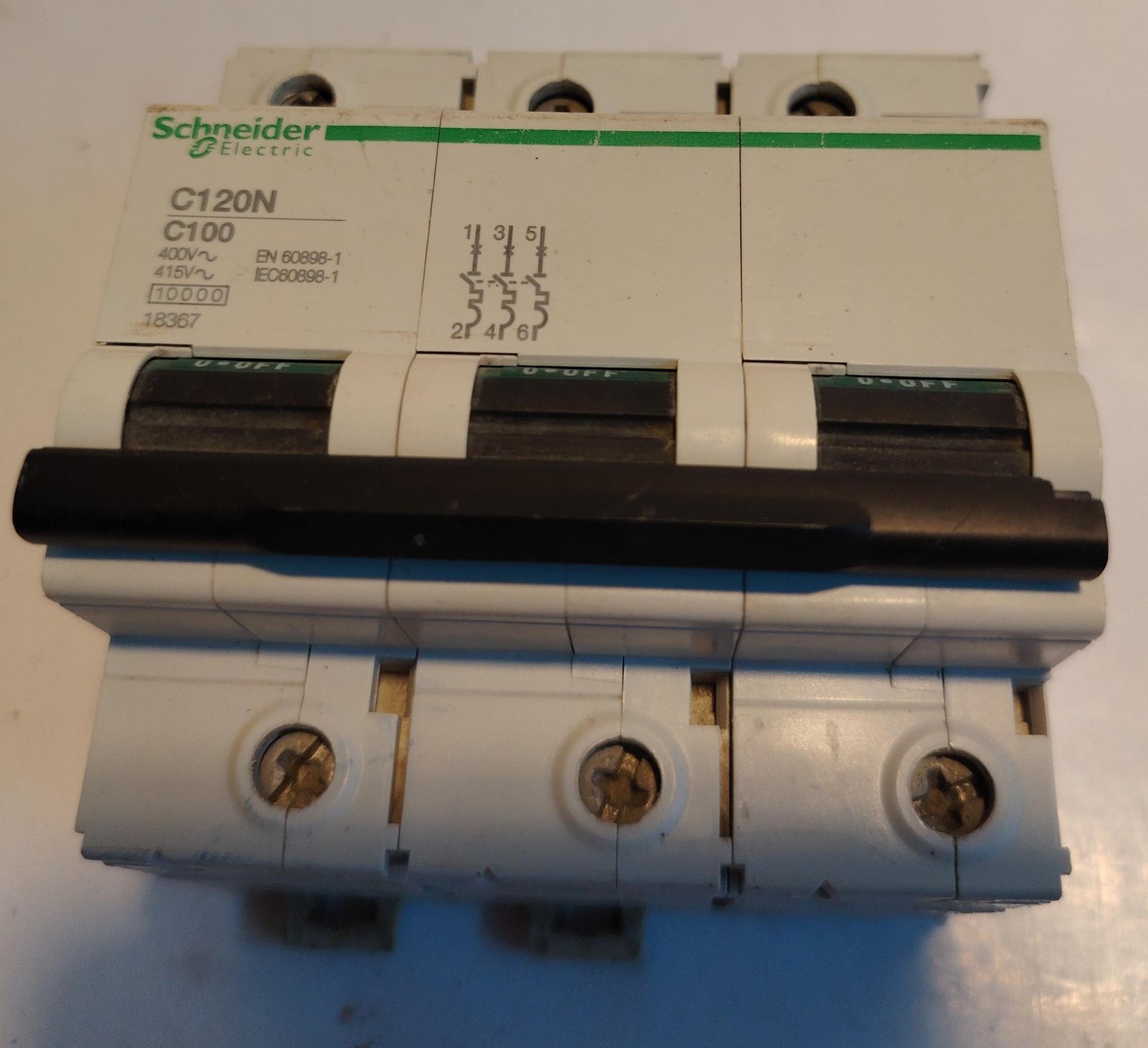

Schneider C120N C100 3-Pole MCB – USED
High-capacity used Schneider Electric C120N series miniature circuit breaker (MCB). Features a heavy-duty 3-Pole (3P) configuration with a C-curve 100 Amp current rating (C100) and a robust 10000A (10kA) short-circuit breaking capacity. Thoroughly bench-tested for dependable mainline and sub-panel circuit safety.
