| Specification / Value | Details & Benefits |
|---|---|
| Item Condition | USED MULTI-PACK — Four matching breakers thoroughly inspected, mechanical toggle operations checked, and terminals verified. |
| Package Quantity | Includes 4 matching single-pole circuit protection units (perfect for multi-circuit panel population or backup electrical inventory). |
| Model & Catalog Code | MT60 Range / Part Number: GW92010 |
| Tripping Curve Style | C Curve characteristics (C32), ideal for standard commercial lighting circuits, domestic ring mains, and general inductive components with moderate inrush currents. |
| Pole Configuration | Each unit is 1-Pole (1P / single-module width) designed for space-saving DIN rail panel array installations. |
| Rated Current (In) | 32 Amps (32A) continuous load execution per breaker. |
| Operational Voltage (Ue) | 230V / 400V~ AC system compatibility running on standard 50/60Hz frequency networks. |
| Breaking Capacity (Icn) | 6000A / 6kA fault current limitation ceiling (Energy Limiting Class 3). |
| Value Advantage | Features clear label identification fields and verified European quality stamps (CE, NF, IMQ, VDE). Pre-owned but fully bench-tested mechanically to supply a budget-friendly solution for panel modifications or stock expansion without full retail cost. |
Circuit Protection & Breakers

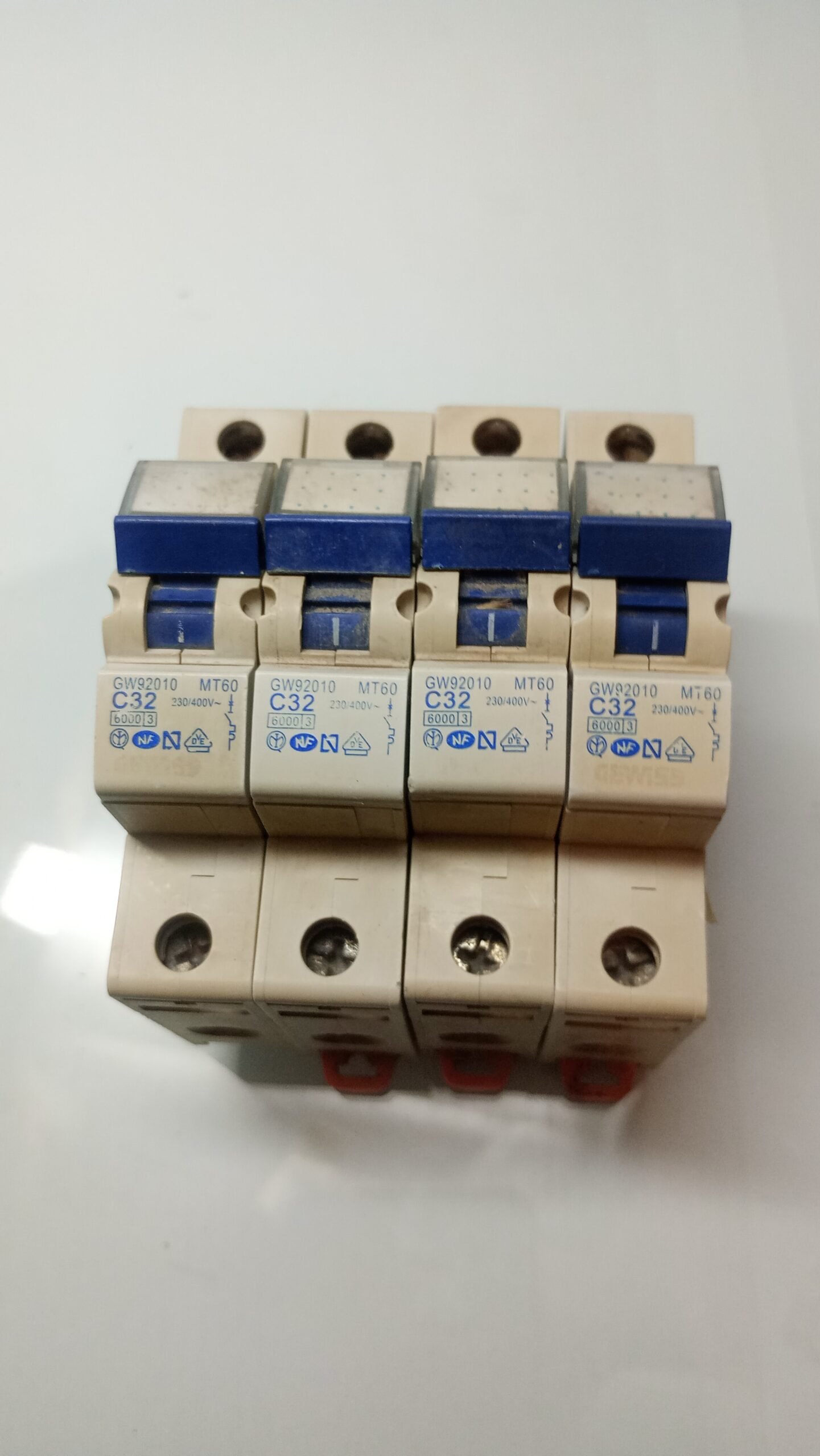

Gewiss GW92010 C32 1-Pole MCB (4 Pack) – USED
High-quality multi-pack lot containing four (4) individual used Gewiss MT60 series miniature circuit breakers (MCBs). Each unit features a compact 1-Pole (1P) modular configuration with a C-curve 32 Amp current rating (C32) and a 6000A (6kA) breaking capacity at 230/400V AC. Fully checked and verified for matching distribution board builds.
