| Specification / Value | Details & Benefits |
|---|---|
| Item Condition | USED — Meticulously inspected, mechanical latch verified, and terminals checked. |
| Product Overview | Industrial-grade current operated residual protection device (RCCB / RCD) built by ABB to instantly interrupt downstream currents upon earth leakage detection, protecting personnel from lethal electrical shocks. |
| Model & Order Codes | FH204 AC Type / Commercial Code: 2CSF204006R1630 |
| Pole Configuration | 4-Pole (4P / 3 Phases + Right-Side Neutral Terminal marked ‘N’) layout for full integration across three-phase distribution networks. |
| Rated Current (In) | 63 Amps (63A) continuous operational load threshold. |
| Leakage Sensitivity (IΔn) | 30mA (0.03A) immediate high-sensitivity trip window, built specifically for advanced life-safety and shock prevention. |
| Operational Voltage (Un) | Rated for standard 415V~ AC industrial grid systems running on 50/60Hz frequencies. |
| Withstand Performance | Rated Conditional Short-Circuit Current (Inc): 6kA | Rated Breaking Capacity (Im): 1000A. |
| Value Advantage | Features an integrated front-facing manual test button marked ‘T’ for swift safety diagnostics. Pre-owned but fully bench-tested mechanically to supply premium ABB system safety at an affordable, cost-saving price point. |
Circuit Protection & Breakers

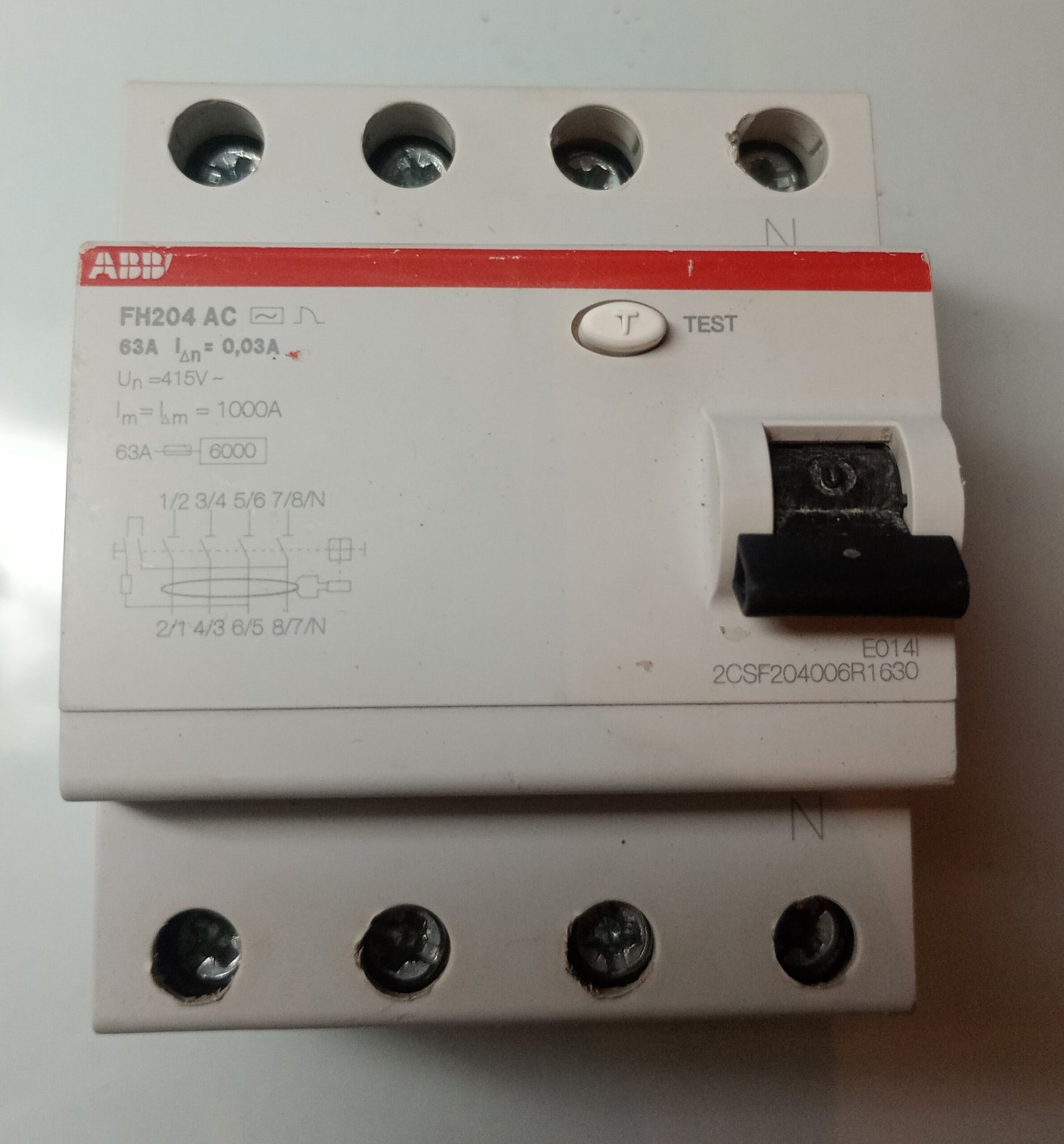

ABB FH204 AC 63A 4-Pole RCCB – USED
High-reliability used ABB FH204 AC series residual current circuit breaker (RCCB / RCD). Features a heavy-duty 4-Pole (4P) architecture rated for up to a 63 Amp continuous load current and a highly responsive 30mA (0.03A) residual leakage trip rating at 415V. Fully checked to deliver crucial shock safety and ground fault mitigation.
