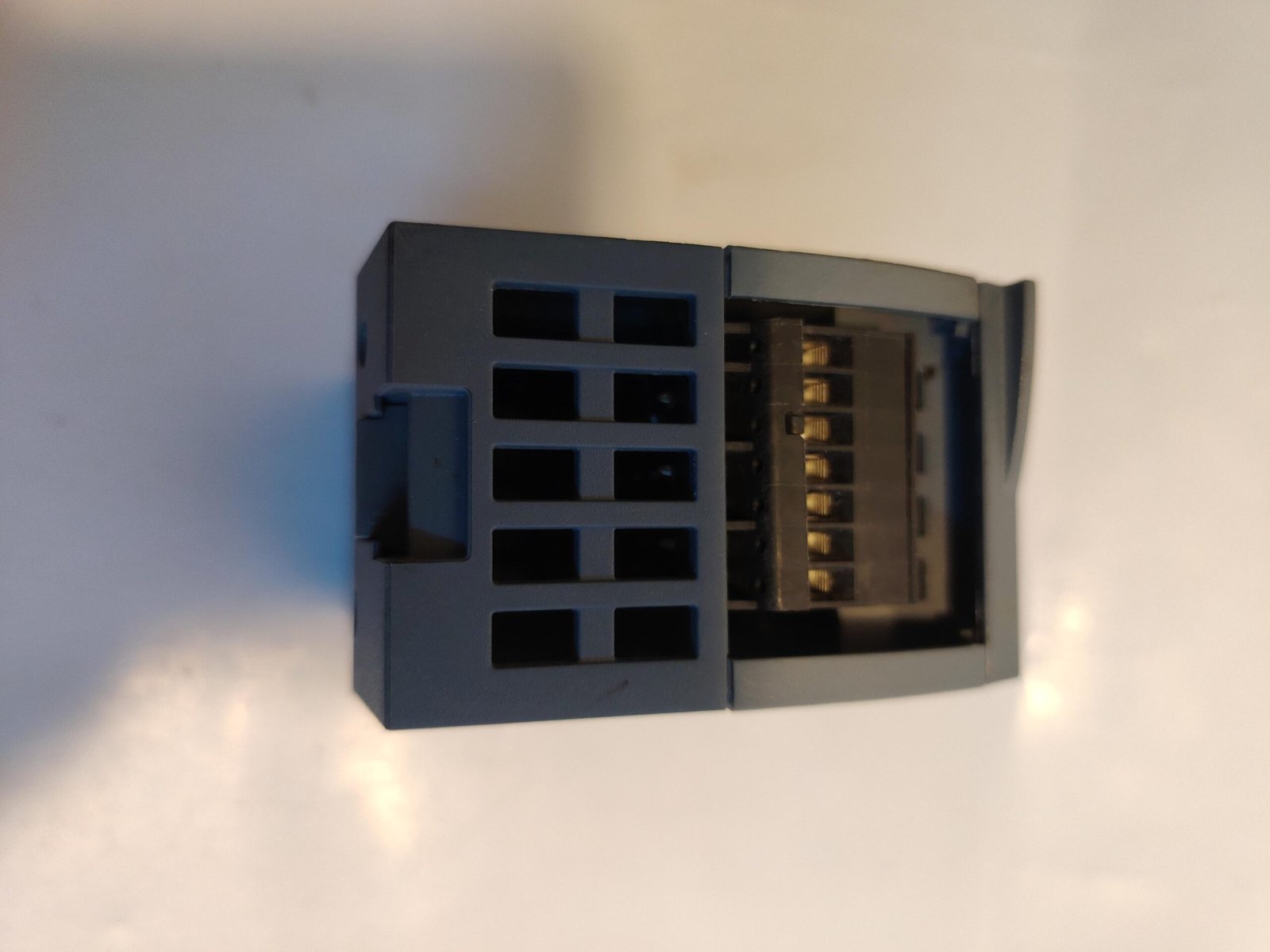

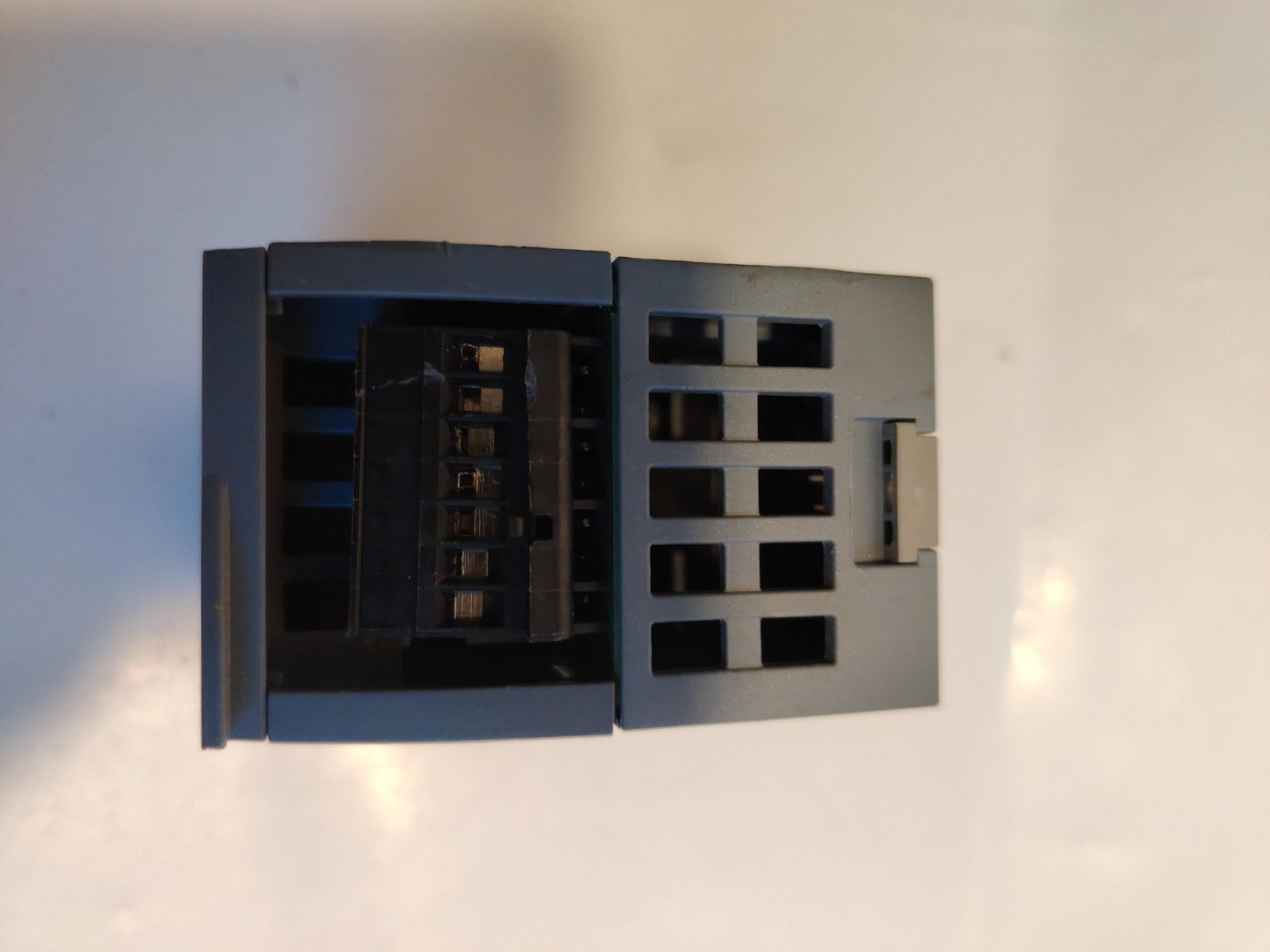

Siemens SIMATIC S7-1200 SM 1222 Digital Output Relay Module Used
Expand the switching capabilities and contact densities of your programmable logic controllers without paying full retail distributor expenses. This fully verified, pre-owned Siemens SIMATIC S7-1200 SM 1222 Digital Output Module provides reliable dry contact relay processing, making it an exceptional component for driving solenoid valves, contactors, alarms, and indicators across factory automation architectures.
| SPECIFICATION / VALUE | DETAILS & BENEFITS |
|---|---|
| Item Condition | USED — Thoroughly inspected second-hand programmable controller stock. The modular housing is fully structural with crisp status marker labels, internal bus backplane connection tracks interface securely, and all wire terminal paths are clean and verified. Manufactured in 2016. |
| Product Type | PLC Digital output expansion signal block (SM 1222 DQ 8 x Relay configuration). |

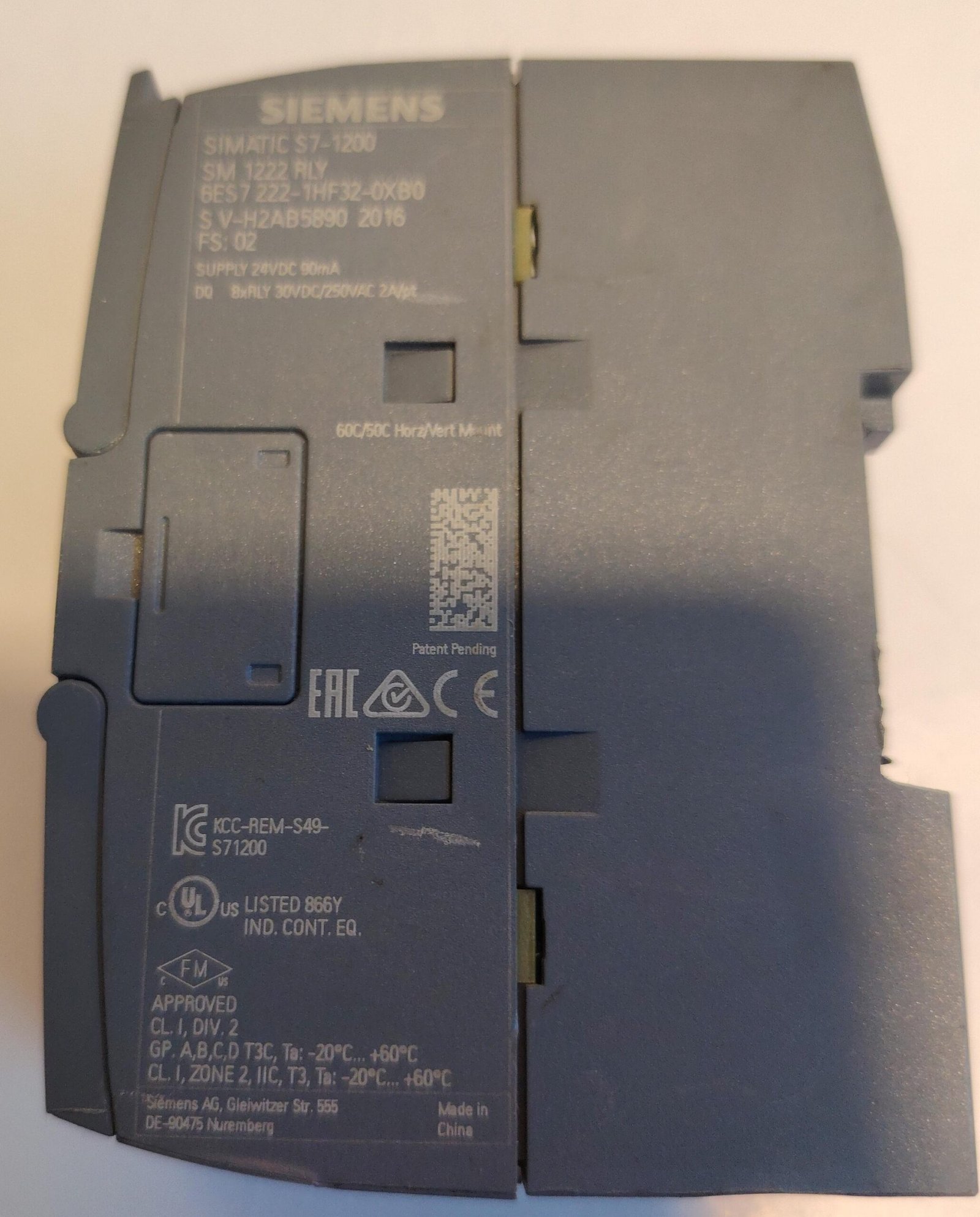

| Model & Part Number | SIMATIC S7-1200 Series / Part Number 6ES7 222-1HF32-0XB0 (Firmware/Hardware state FS: 02). Conforms strictly to industrial logic machinery codes. Certified by UL, CE, EAC, KC, and FM standards. |

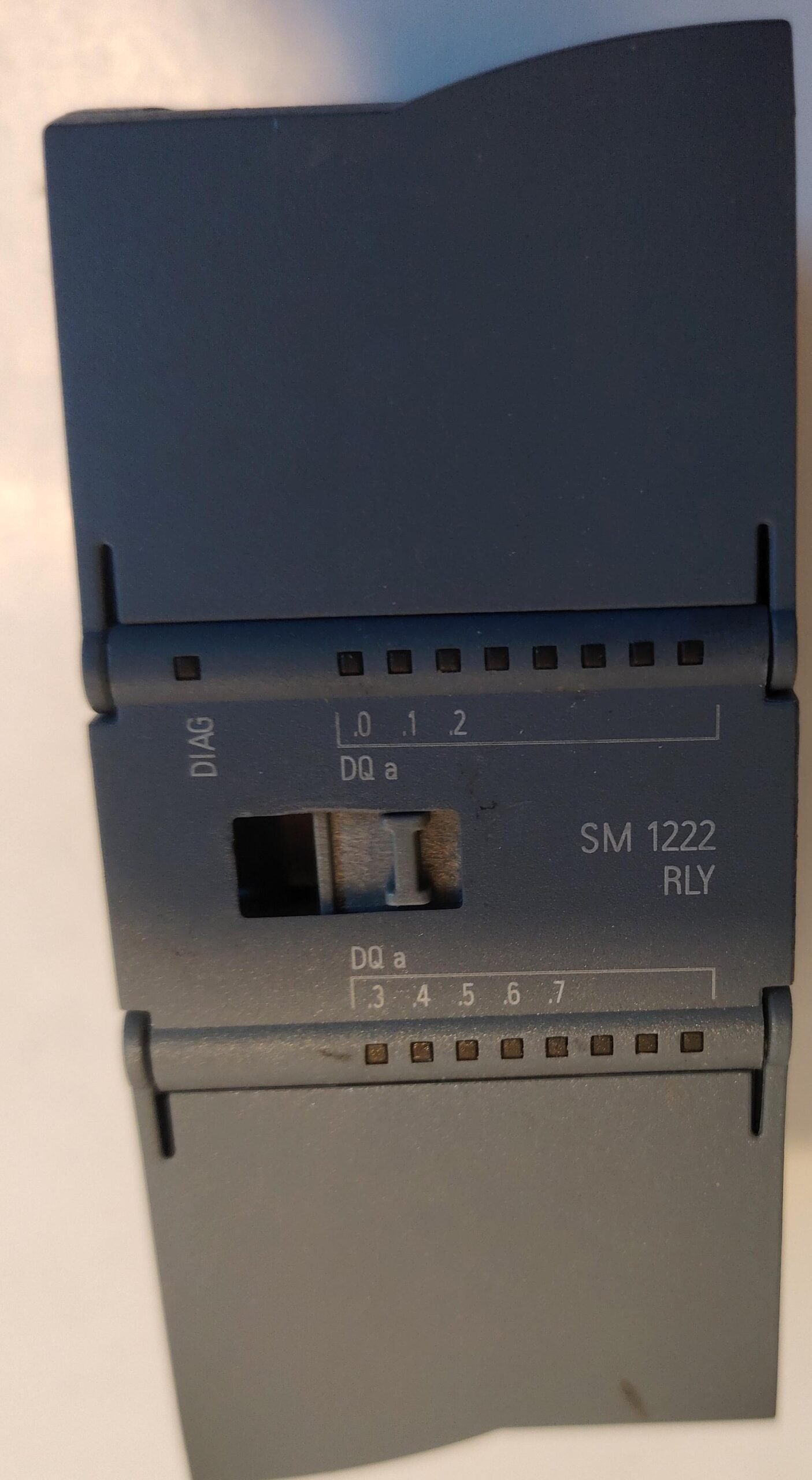

| Digital Outputs (DQ) | 8 Digital Output dry relay changeover channels divided cleanly across lower and upper terminal matrices (DQ a 0-2 / DQ a 3-7). Supports switching capacities up to 30V DC or 250V AC with a heavy continuous current load rating of 2A per contact. |
| Supply & Consumption | Powered via an auxiliary line terminal tracking at 24V DC requiring an operational continuous current threshold of 50mA. |

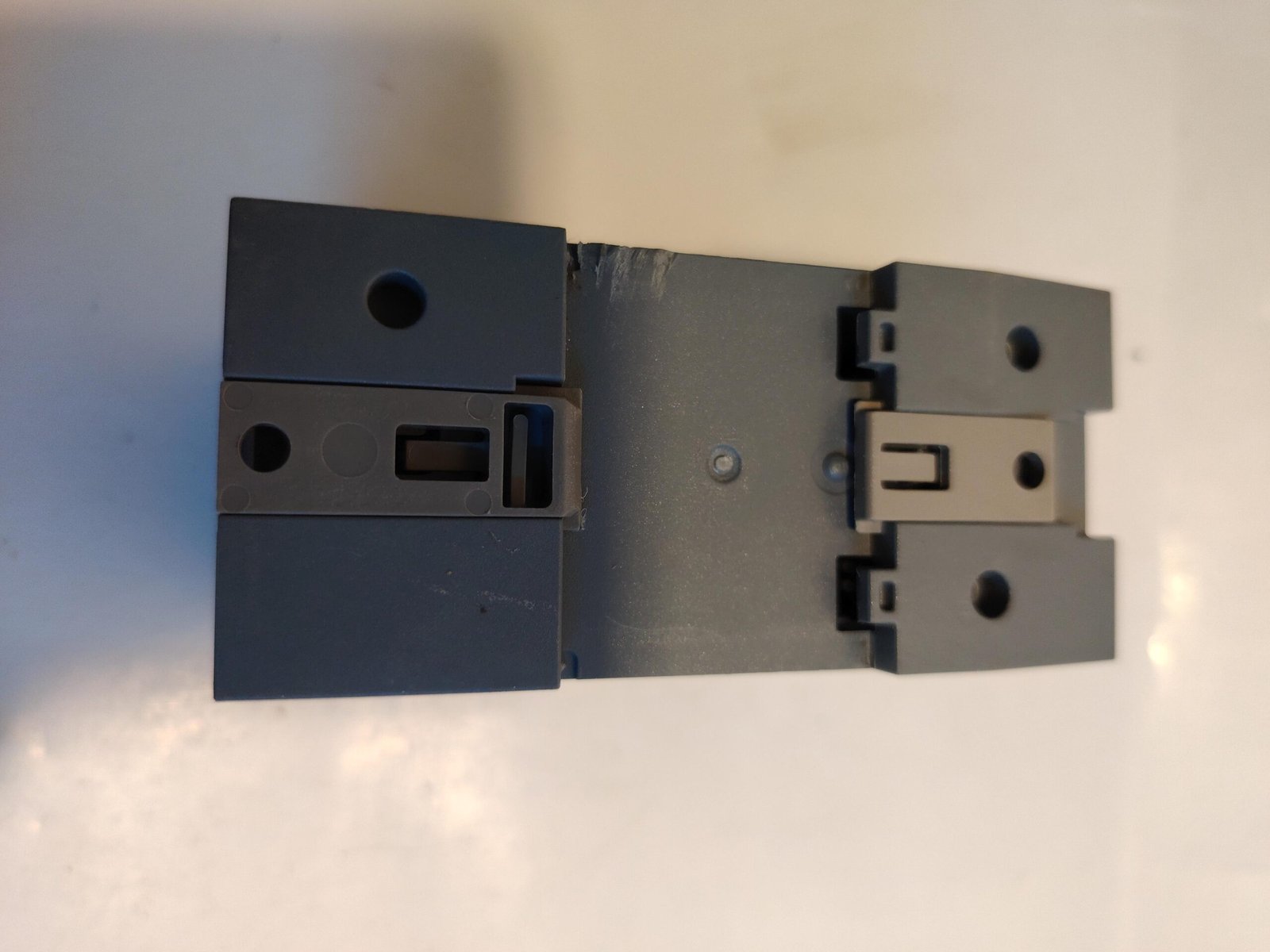

| Mounting Configuration | Compact modular profile engineered for quick tool-free DIN-rail attachment or direct panel screw grid placement. Calibrated for reliable thermal execution under 55°C horizontal mounting or 45°C vertical mounting constraints. Certified for Class I, Division 2 hazardous locations. |
| Value Advantage | Genuine German engineering by Siemens. High-density pluggable terminal design accelerates field replacement cycles while saving significant installation workspace inside dense electrical sub-panels. This single expansion block offers plant facility managers an incredibly economical alternative to build up spare component inventories. |
