Omron MK2P-I 8-Pin Power Relay with DIN Rail Socket Base Used
Get authentic, professional industrial automation hardware without paying full retail switchboard expenses. This pre-owned Omron MK2P-I Relay and Socket Combination features a clear protective dust cover shell with a crisp internal schematic map and a robust multi-tier socket base layout, offering an efficient configuration for machinery automation panels, sequence interlocking networks, and signal isolation loops.
| SPECIFICATION / VALUE | DETAILS & BENEFITS |
|---|---|
| Item Condition | USED — Thoroughly bench-tested, cleaned, and fully operational. The internal copper armature coil mechanism moves with a quick, crisp response, and all base connection screw tracks have been cleared out. The yellow plastic DIN rail locking clip retains excellent snap tension. Made in Malaysia. |
| Product Overview | Industrial-grade modular plug-in logic relay assembly combining a high-capacity switching armature block with a heavy-duty tracking holder socket. |

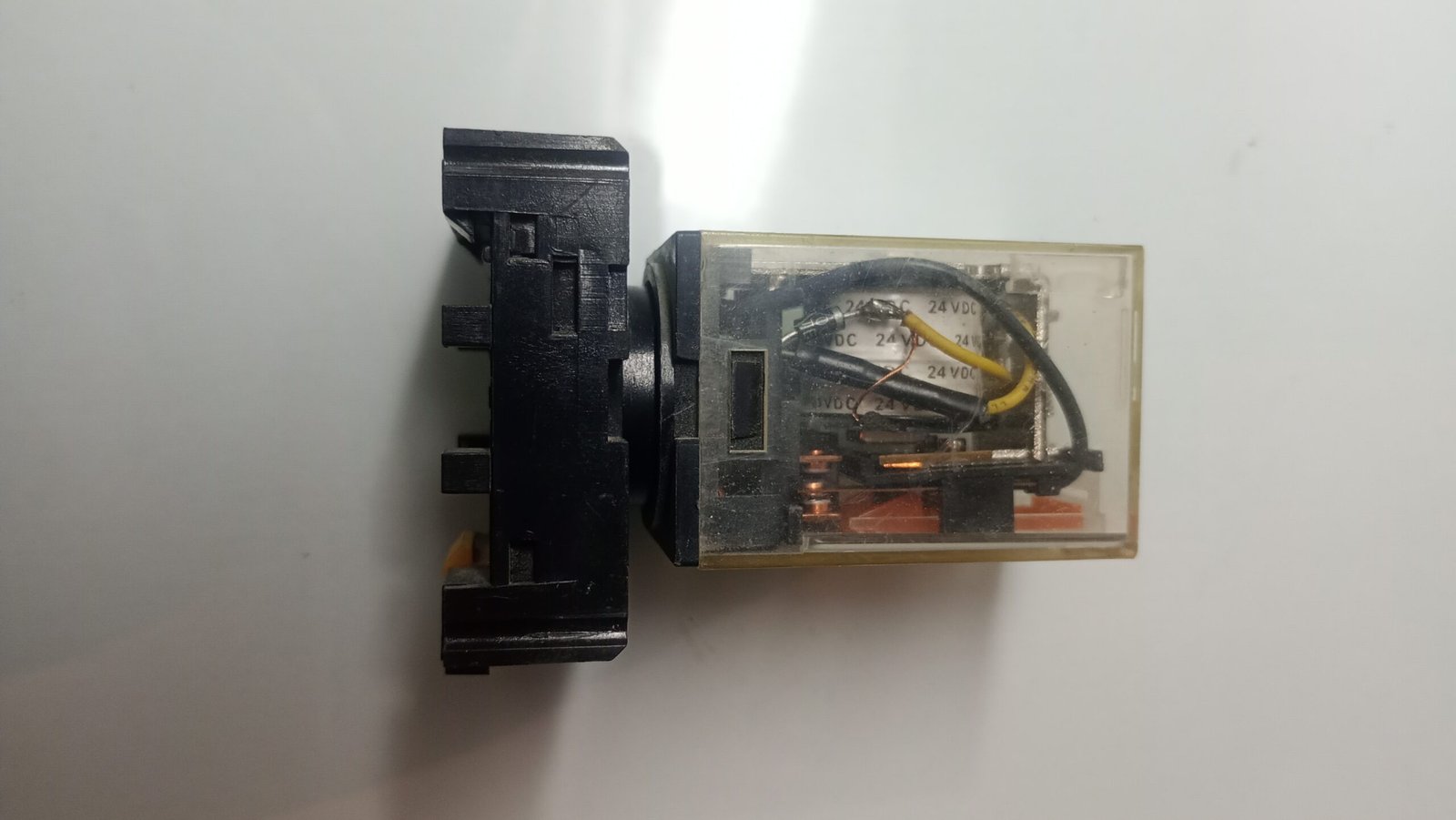

| Assembly Components | Consists of 1x Omron MK2P-I Plug-In General Purpose Relay mounted directly into 1x Omron 8-pin multi-tier screw terminal base (PF083A profile layout). |

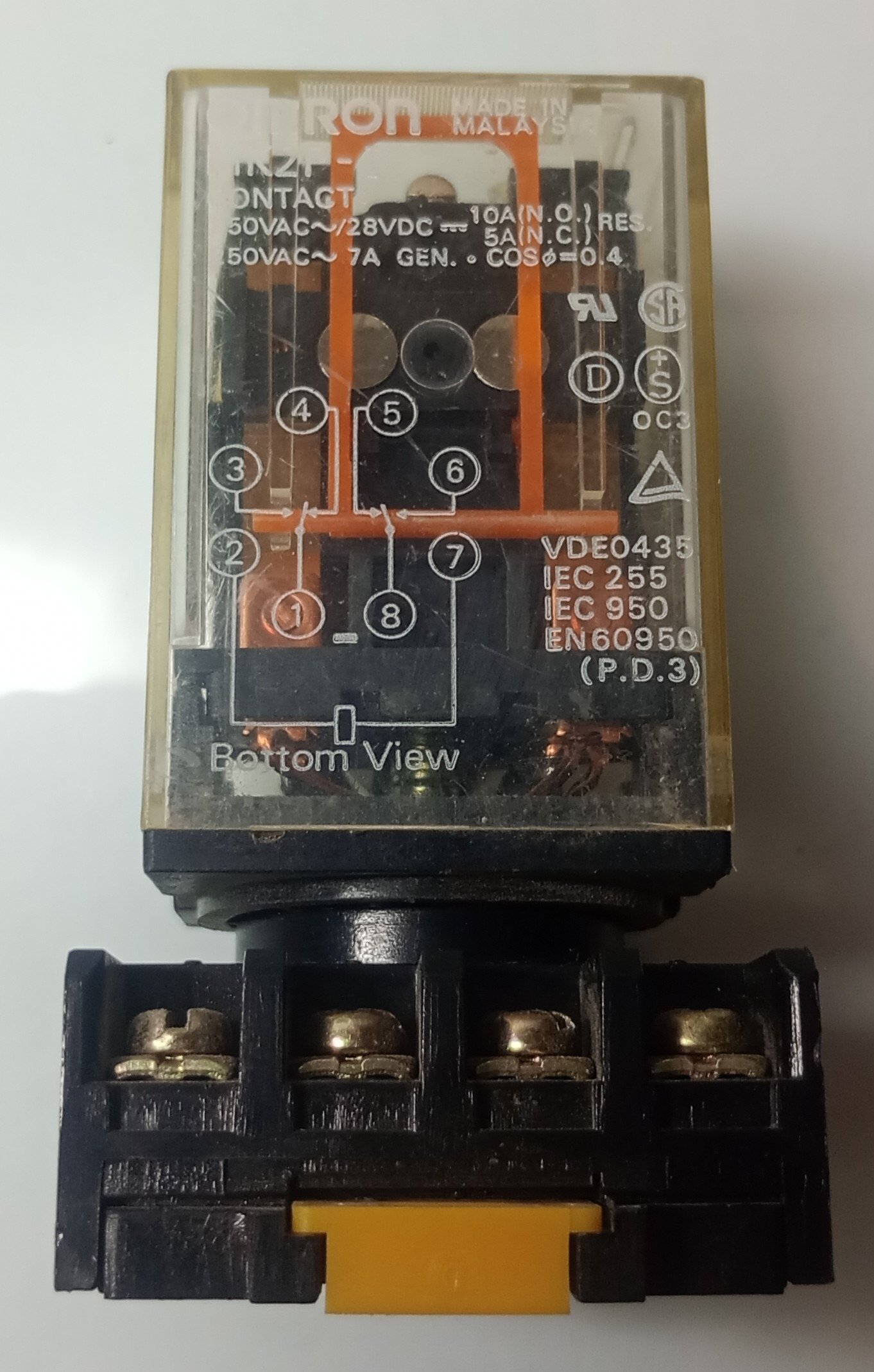

| Contact Configuration | DPDT (Double Pole Double Throw) multi-pole switching configuration featuring an easy-to-read “Bottom View” wiring diagram stamped directly onto the clear casing faceplate. |
| Electrical Load Ratings | Resistive Load (COSφ=1): 10A @ 250V AC / 28V DC (Normally Open paths) and 5A @ 250V AC (Normally Closed paths). General Purpose (COSφ=0.4): Rated safely for 7A continuous handling at 250V AC cycles. |
| Safety & Compliance Standards | Conforms to rigorous global standards including VDE 0435, IEC 255, IEC 950, and EN 60950 (P.D.3 classification). Full UL, CSA, Demko, and Semko listings unblemished on the shell flank. |

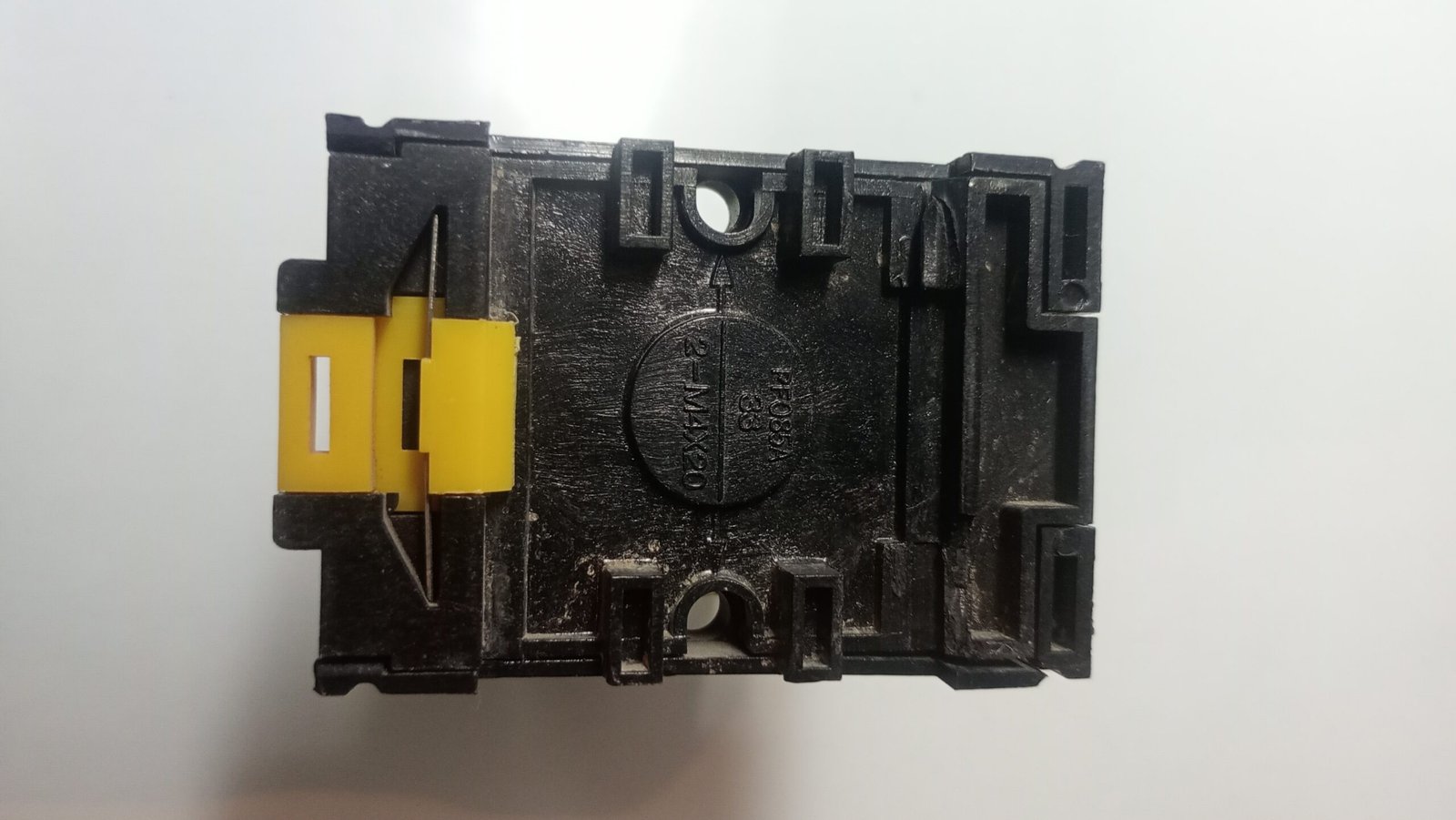

| Mounting Configuration | Designed for compact, seamless snap integration onto standard 35mm structural top-hat utility DIN rails or direct surface backplate screw panel installation. |
| Value Advantage | Authentic premium switchgear hardware bundle by Omron. Checked mechanically and electronically to guarantee consistent internal contact routing and base clip resilience without full distributor retail pricing. |
