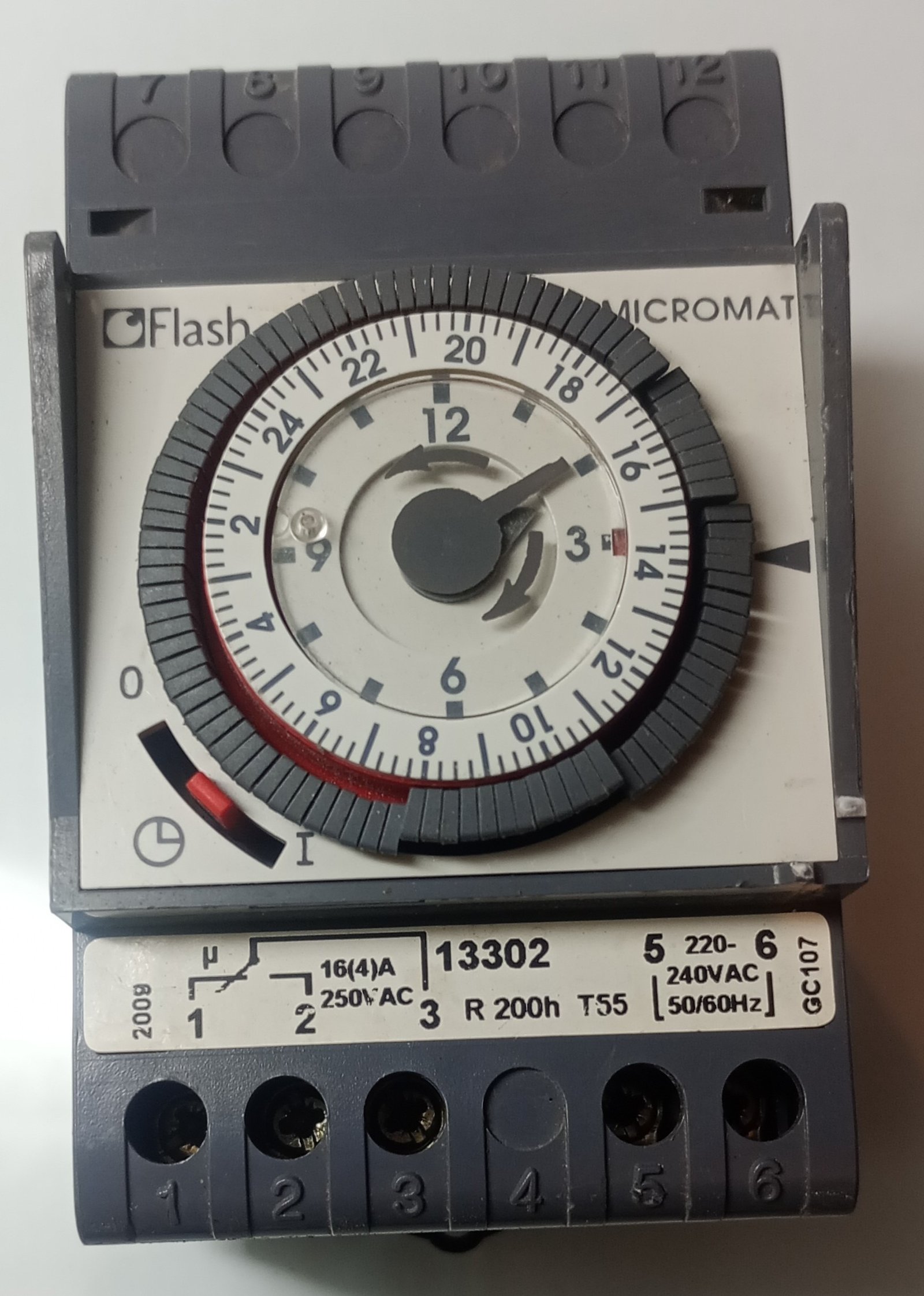

Flash Micromat 13302 24-Hour Analogue Time Switch Switchboard Clock Used
Get authentic, industrial-grade power scheduling switchgear without paying full retail switchboard expenses. This pre-owned Flash Micromat 13302 Daily Time Switch provides highly reliable, mechanical segment-adjustable timing control for water heaters, commercial lighting systems, ventilation networks, heating grids, and sub-panel automated loops.
| SPECIFICATION / VALUE | DETAILS & BENEFITS |
|---|---|
| Item Condition | USED — Thoroughly bench-tested and fully operational. The manual multi-position lever switches cleanly, the mechanical program dial ring turns with perfect precision, and the transparent protective shield is intact. Terminal screw slots have been cleared. |
| Product Overview | Industrial-grade, high-durability electromechanical daily programming clock manufactured in France by Flash, designed for space-saving DIN rail distributions. |
| Model / Series Reference | Micromat Series / Part Number 13302 (Conforms to global EN 60.730 structural criteria). |
| Timebase & Programming Dial | 24-Hour (Daily) circular program cycle cadran layout. Configured via 96 captive mechanical segments providing up to 96 commutations per day with a minimum switching interval of 15 minutes. |
| Battery Power Reserve | Quartz Controlled with 200-Hour Reserve (R 200h) — Features an integrated internal NiMH rechargeable power reserve to keep the time ticking smoothly during mains outages. |
| Contact Configuration | 1 Potential-free SPDT changeover contact switch loop (Inverseur contact system). |
| Electrical Switching Load | Resistive Load (cos φ = 1): Heavy 16 Amps (16A) continuous capability at 250V AC. Inductive Motor Load (cos φ = 0.6): Rated up to 4 Amps max load execution paths. |
| Operating Input Voltage | 220V – 240V AC source grid loops matching 50Hz / 60Hz system frequencies (Power consumption: ~0.5 VA). |
| Mounting Configuration | Designed for compact, standard modular panel spacing taking up exactly 3 modules width on top-hat 35mm structural DIN utility rails. |
| Value Advantage | Authentic premium switchgear componentry by Flash. Checked mechanically and electrically to guarantee consistent internal logic contact routing and clock mechanism resilience without original distributor factory markup. |
