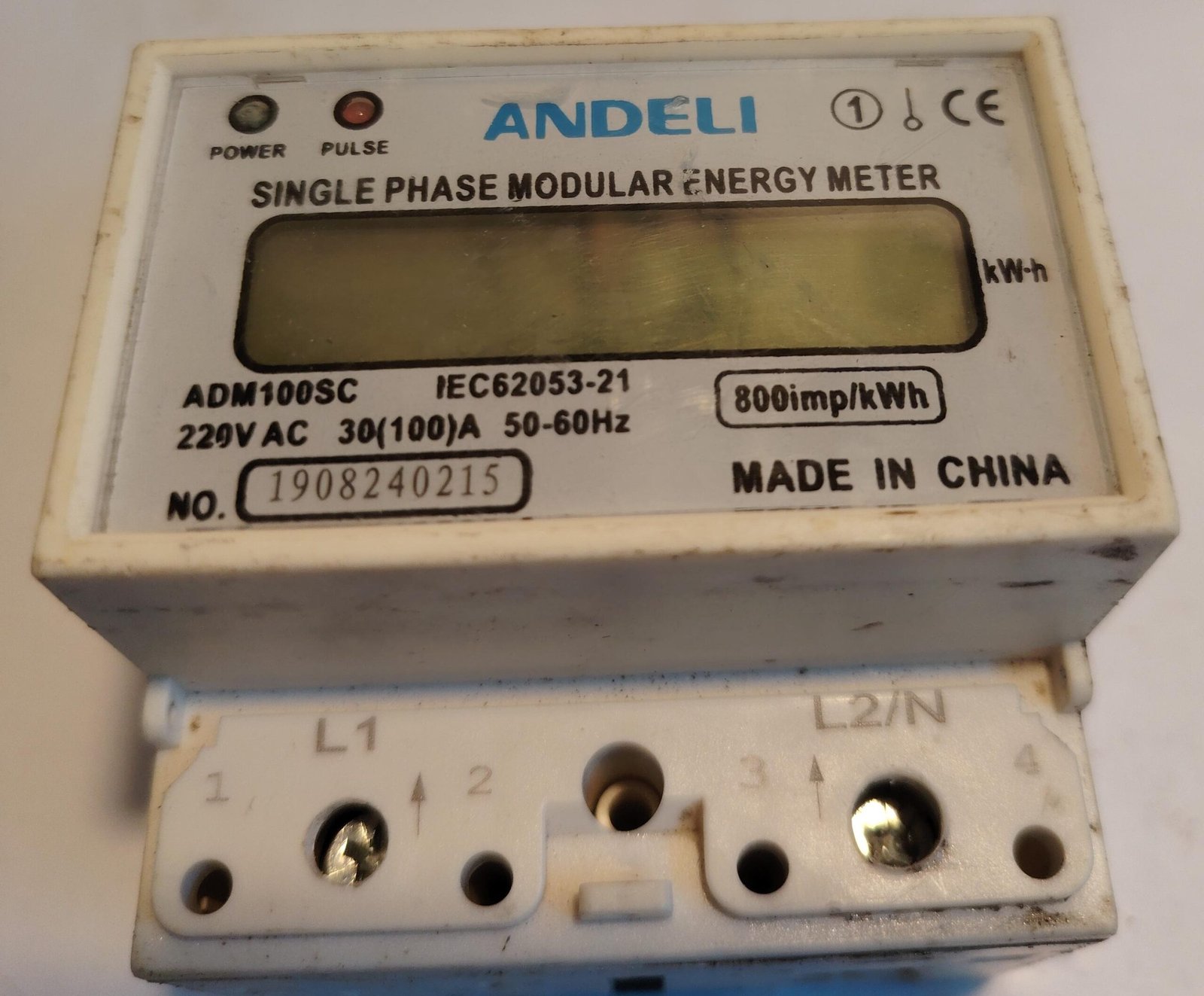

Andeli ADM100SC Single Phase Modular Energy Meter Used
Accurately track electrical power consumption and manage sub-metering setups without paying full retail distributor expenses. This fully verified, pre-owned Andeli ADM100SC Single Phase Energy Meter provides reliable electromechanical and digital kilowatt-hour (kWh) tracking, serving as an exceptional component for residential rental units, commercial workshops, and localized distribution panel sub-meter configurations.
| SPECIFICATION / VALUE | DETAILS & BENEFITS |
|---|---|
| Item Condition | USED — Thoroughly inspected second-hand metering stock. The modular non-conductive casing is fully structural, the digital display window cover is intact, lower heavy-duty terminal blocks (L1 and L2/N pathways) are clean, and mounting tracks are completely verified. Serial Number: 1908240215. |
| Product Type | Single-phase modular electromechanical/digital kilowatt-hour (kWh) electrical energy consumption meter. |
| Model / Series Reference | ADM100 Series / Full Model Code ADM100SC (Conforms strictly to international safety and measurement standard IEC62053-21 parameters). Certified with the CE marking. |
| Operating Voltage | 220V AC continuous input threshold calibrated to handle standard 50Hz and 60Hz frequency utility networks safely. |
| Current Capacity Rating | 30(100)A layout framework supporting a 30 Amp base operating current with a maximum continuous load carrying limit of up to 100 Amps. |
| Pulse Constant | 800imp/kWh. Equipped with an integrated red “PULSE” light-emitting diode (LED) indicator window that flashes 800 times per kilowatt-hour consumed for straightforward calibration testing. |
| Diagnostic Indicators | Features front-facing LED status lights including a dedicated “POWER” operational indicator to confirm active line input tracking at a glance. |
| Terminal Layout | Features clear front-facing connection tracking markings across heavy-duty screw terminal paths, including L1 (Line In/Out) and L2/N (Neutral) connection points for rapid multi-wire installation. |
| Value Advantage | Genuine modular sub-metering switchgear by Andeli. Compact profile footprint optimizes DIN-rail space efficiency inside sub-distribution panel board assemblies. Offers property managers, landlords, and facility engineers an incredibly cost-effective alternative to log power allocation data accurately. |
